Kia Cadenza: Intake And Exhaust System / Air Cleaner Components and Components Location

Kia Cadenza YG 2016-2025 Service Manual / Engine Mechanical System / Intake And Exhaust System / Air Cleaner Components and Components Location

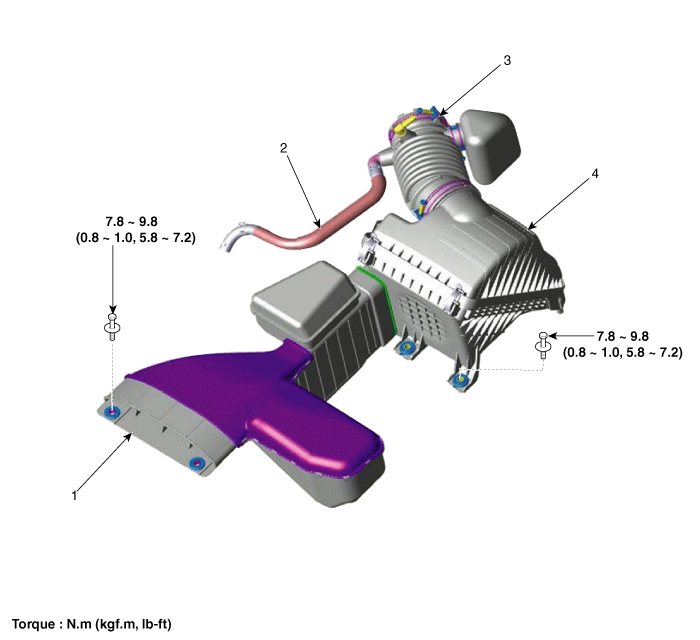

Components

1.  Air duct
2.  Breather hose
3. Air intake hose
4.  Air cleaner assembly

Intake And Exhaust System
...

Air Cleaner Repair procedures
Removal and Installation 1. Remove the battery. (Refer to Engine Electrical System - "Battery") 2. Remove the engine cover. 3. Remove the air duct (A). Tightening torque : 7.8 ~ 9.8 ...
