Kia Cadenza YG: Charging System / Battery Troubleshooting

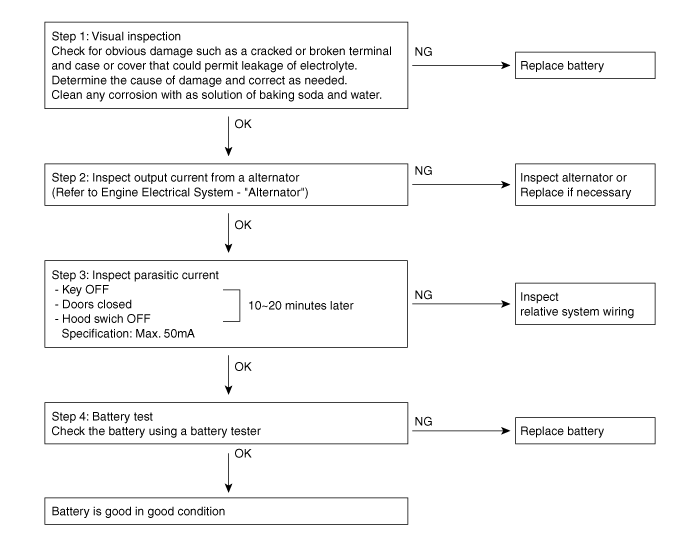

| Troubleshooting |
Removal 1. Remove the air duct (A). 2. Disconnect the battery (-) terminal (A)and then (+) terminal (B). 3. Remove the battery mounting bracket (D) and the insulation pad (C), and then remove the battery (E).
Description Vehicles have many control units that use more electricity. These units control their own system based on information from diverse sensors.
