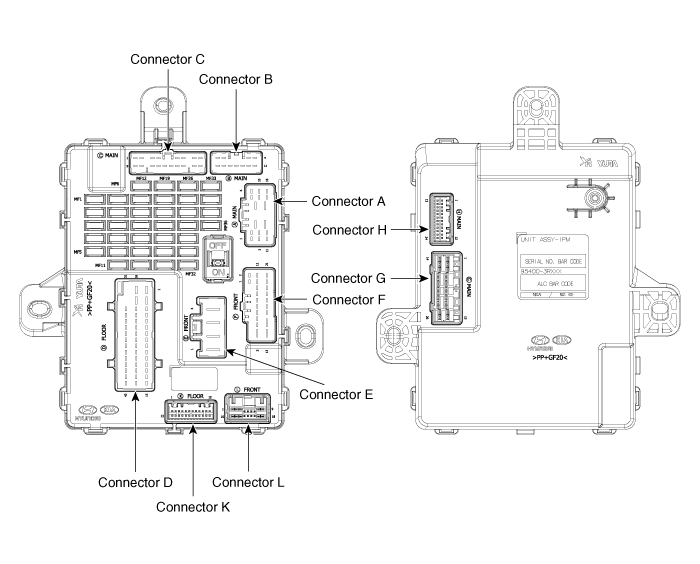

| Components |

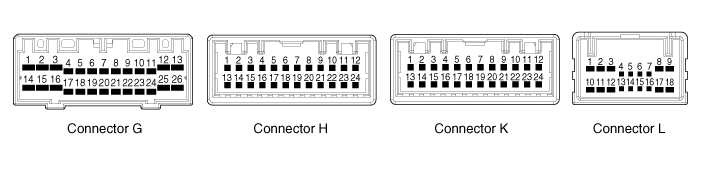

Connector Pin Information
| No. | Connector G | Connector H | Connector K | Connector L |
| 1 | Power ground | Front fog lamp switch | Room lamp | Front left turn signal lamp |
| 2 | Washer switch | PAS OFF switch | Rear power window relay power | LED DRL - LH |
| 3 | Security indicator | Defroster | Rear right power window up relay | LED DRL - RH |
| 4 | Assist seat belt switch | Auto light switch | Rear left power window up relay | Rain sensor option |
| 5 | Head lamp washer | Tail switch | Driver door open switch | - |
| 6 | Wiper intermittent volume | Left turn signal lamp switch | Assist door open switch | - |
| 7 | Body load | K Line | Driver seat belt switch | - |
| 8 | PAS OFF indicator | PAS/RPAS option | Rear right door unlock | - |
| 9 | C CAN low | MTS data | Rear left door unlock | External buzzer |
| 10 | C CAN high | BCM data | LIN | Front right turn signal lamp |
| 11 | Auto light ground | Key insert signal | - | Wiper low relay |
| 12 | AV tail | Rear fog lamp switch | Rear left turn signal lamp | ATM solenoid |
| 13 | Signal ground | B CAN low | Foot lamp | Hood switch |
| 14 | Kel solenoid | B CAN high | Trunk room lamp | - |
| 15 | Key hole illumination | Head lamp high switch | Rear right power window down relay | - |
| 16 | - | Wiper intermittent switch | Rear left power window down relay | HID option |
| 17 | - | Wiper mist switch | P position | Wiper high relay |
| 18 | Rear fog lamp relay | Right turn signal lamp switch | Rear right door open swith | Wiper stop status |
| 19 | Trunk release relay | Parking brake switch | Rear left door open swith | |
| 20 | Auto light power | Side airbag option | Trunk open status | |
| 21 | Frong fog lamp LED option | Passing switch | External trunk switch | |
| 22 | Stop lamp switch | Head lmap low switch | Rain sensor input | |
| 23 | Auto light sensor | Hazard switch | Rain sensor output | |
| 24 | Burglar alarm horn relay | - | Rear right turn signal lamp | |
| 25 | - | | | |
| 26 | Assist seat belt indicator |
Body Control Module (BCM) Specifications
Specifications
ItemsSpecificationsRated voltageDC 12VOperating voltageDC 9 ~ 16VOperating temperature-22°F ~ 167°F (-30°C ~ 75°C)Dark currentKeyless type : Max. 4.5mAStandard : Max. 3.0mA
...
Body Control Module (BCM) Schematic Diagrams
Circuit Diagram
...
