Kia Cadenza: Multifunction switch / Components and Components Location

Kia Cadenza YG 2016-2025 Service Manual / Body Electrical System / Multifunction switch / Components and Components Location

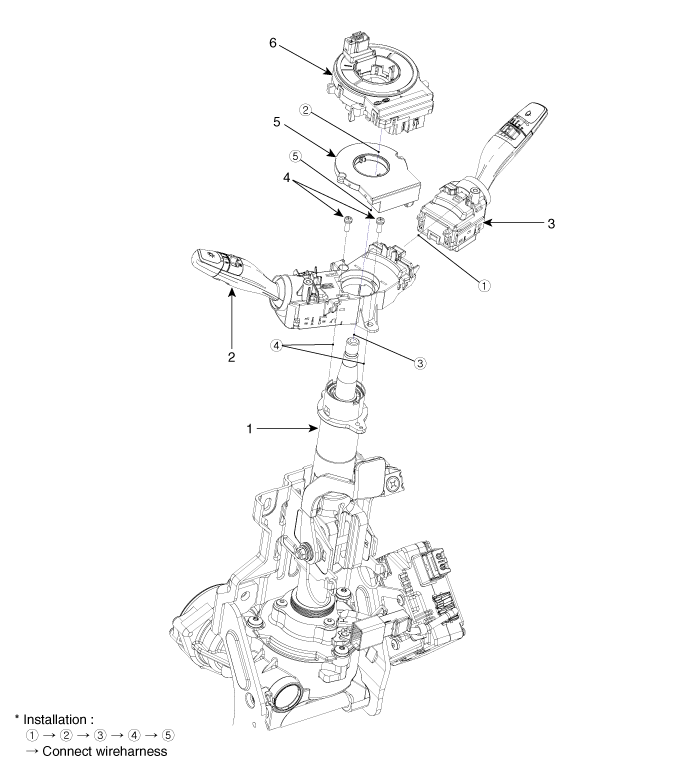

Component (1)

1. Steering column
2. Lighting switch
3. Wiper switch
4. Screw
5. Steering angle sensor
6. Clock spring

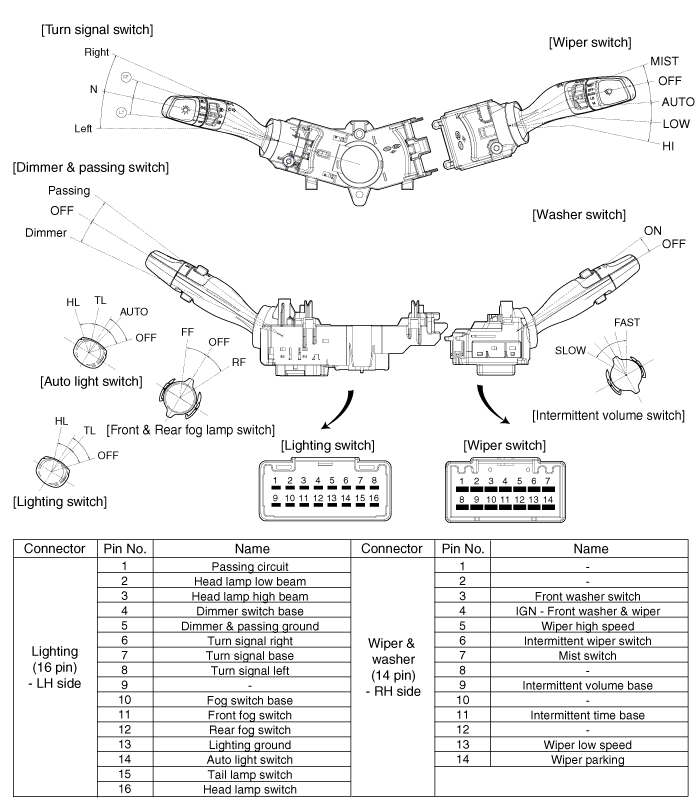

Component (2)

Specifications
Specifications ItemsSpecificationsRated voltageDC 12VOperating temperature range-30°C ~ +80°C (-22 ~ +176°F)Rated loadDimmer & passing switchHigh : 0.2A (Relay load)Low : 0.2A (Relay load) ...

Repair procedures
Inspection Lighting Switch Inspection With the multi function switch in each position, make sure that continuity exists between the terminals below. If continuity is not as specified, replace ...
