Kia Cadenza: Rear Parking Assist System / Components and Components Location

Kia Cadenza YG 2016-2025 Service Manual / Body Electrical System / Rear Parking Assist System / Components and Components Location

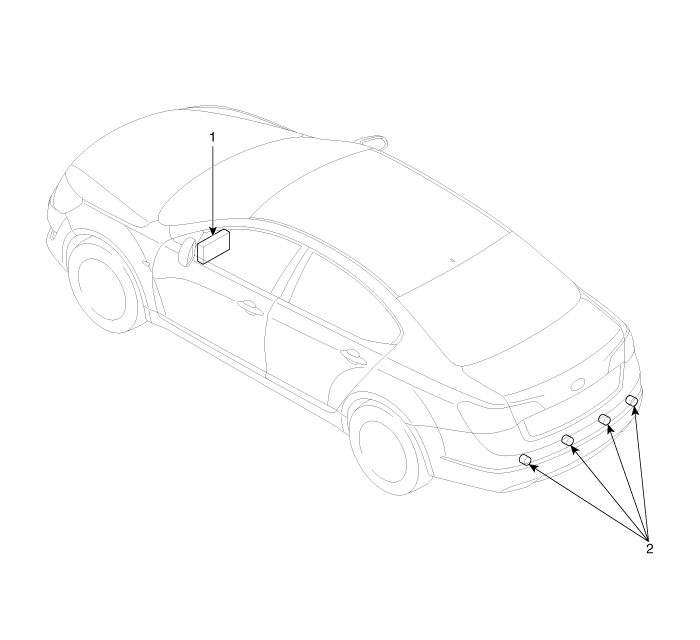

Component Location

1. BCM (Body Control Module)

2. Ultrasonic sensor

※ Rear parking assist control unit function is built in IPM (Intelligent integrated Platform Module).

Specifications

Specification ItemSpecificationUltrasonic sensorVoltage ratingDC 12 VDetecting range30 cm ~ 120 cmOperation voltageDC 9 ~ 16 VOperation currentMAX 300 mAOperation temperature-30°C ~ +80°C (-22� ...

Description and Operation

System Overview RPAS (Rear Parking Assist System) is an electronic driving aid that warns the driver to be cautious while parking or in low speed environments. The sensor uses ultrasonic waves ...
