Kia Cadenza: Electronic stability control (ESC) / ESC operation off
ESC OFF state
This car has 2 kinds of ESC off states. If the vehicle stops when ESC is off, ESC remains off. Upon restarting the vehicle, the ESC will automatically turn on again.
.jpg)

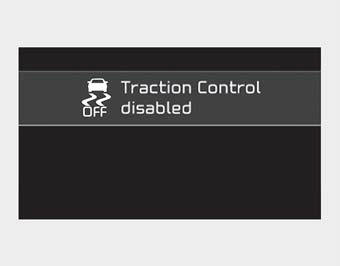

• ESC off state 1
To cancel ESC operation, press the
ESC OFF button (ESC OFF .gif)
) shortly
(ESC OFF indicator light (ESC OFF
) illuminates). At this state, the
engine control function does not operate.
It means the traction control function
does not operate. Brake control
function only operates.
.jpg)

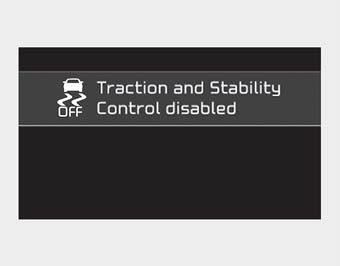

• ESC off state 2
To cancel ESC operation, press the
ESC OFF button (ESC OFF ) for
more than 3 seconds. ESC OFF indicator
light (ESC OFF ) illuminates
and ESC OFF warning chime will
sound. At this state, the engine control
function and brake control function
do not operate. It means the car
stability control function does not
operate any more.
ESC operation
ESC ON condition
When the ENGINE
START/STOP button is
turned ON, ESC and ESC
OFF indicator lights illuminate
for approximately 3
seconds, then ESC is
turned on.
Press the ESC ...
Indicator light
When ENGINE START/STOP button
is turned to ON, the indicator light
illuminates, then goes off if the ESC
system is operating normally.
The ESC indicator light blinks whenever
ESC is operati ...
