Kia Cadenza: Heater / Heater Unit Components and Components Location

Kia Cadenza YG 2016-2025 Service Manual / Heating,Ventilation, Air Conditioning / Heater / Heater Unit Components and Components Location

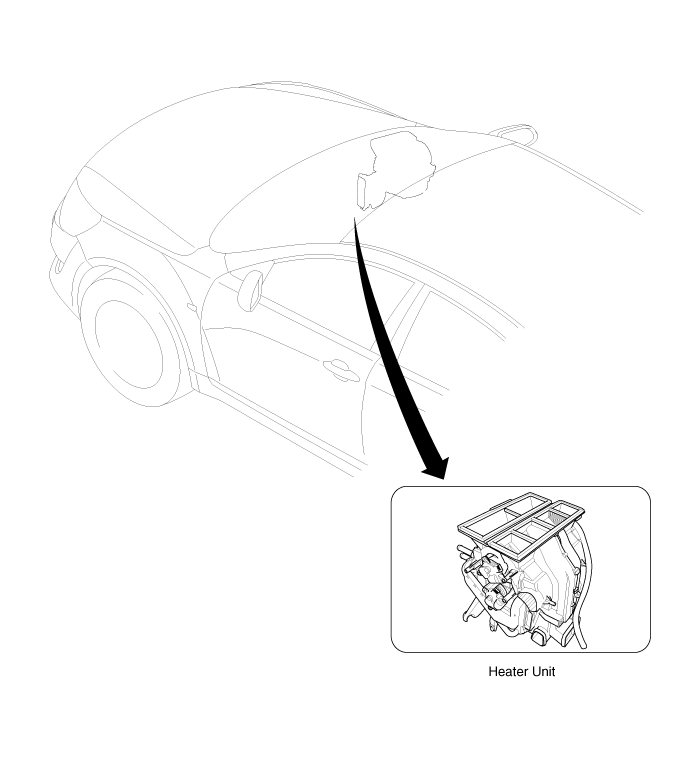

Component Location

Components

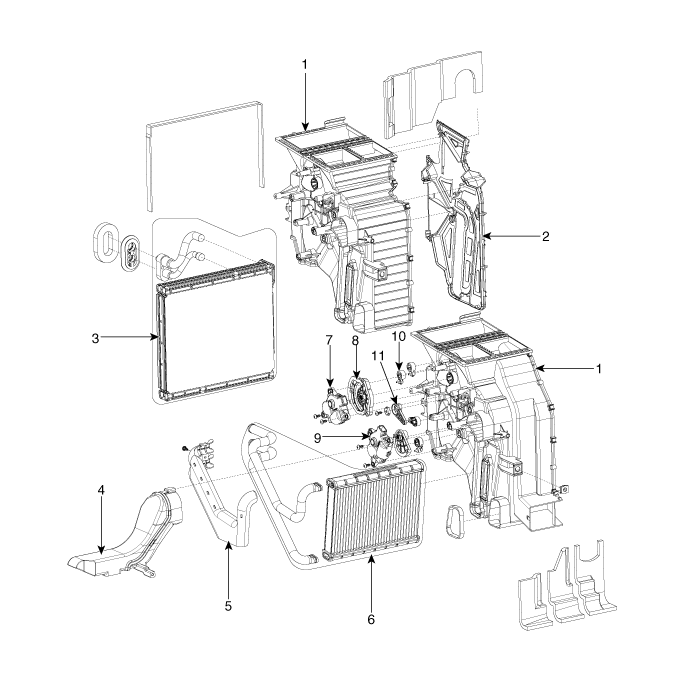

1. Heater Case (LH)
2. Separator
3. Evaporator Core
4. Shower Duct (LH)
5. Heater Core Cover
6. Heater Core
7. Mode Actuator
8. Mode Cam
9. Temp Actuator (Drive)
10. Vent Door Arm
11. Floor Door Arm

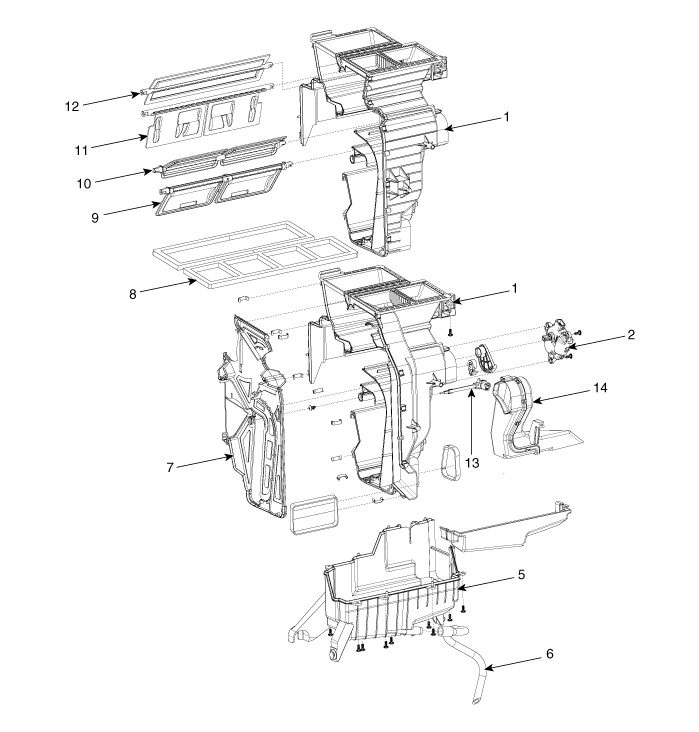

1. Heater Case (RH)
2. Temp Actuator (Passenger)
3. Temp Door Lever
4. Evaporator Temp Sensor
5. Hearer Lower Case
6. Drain Hose
7. Separator
8. Insulator
9. Temp Door
10. Floor Door
11. Vent Door
12. Def Door
13. Evaporator sensor
14. Shower duct(RH)

Heater
...

Heater Unit Repair procedures
Replacement 1. Disconnect the negative (-) battery terminal. 2. Recover the refrigerant with a recovery/ recycling/ charging station. 3. When the engine is cool, drain the engine coola ...
