Kia Cadenza: Cylinder Block / Rear Oil Seal Components and Components Location

Kia Cadenza YG 2016-2025 Service Manual / Engine Mechanical System / Cylinder Block / Rear Oil Seal Components and Components Location

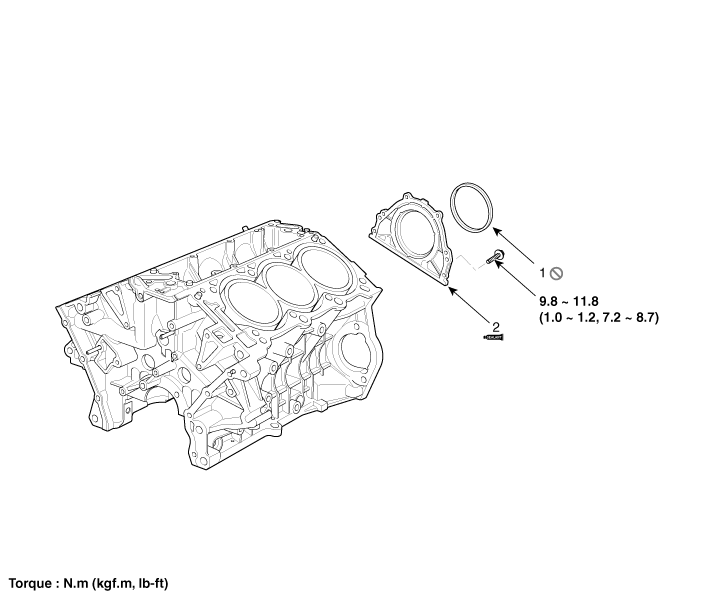

Components

1. Rear oil seal
2. Oil seal case

Drive Plate Repair procedures
Removal and Installation 1. Remove the automatic transaxle . (Refer to Automatic Transaxle System - "Automatic Transaxle") 2. Remove the adapter plate (A) and the drive plate (B). Tighte ...

Rear Oil Seal Repair procedures
Removal 1. Remove the transaxle assembly. (Refer to Automatic Transaxle System - "Automatic Transaxle") 2. Remove the drive plate. (Refer to Cylinder Block - "Drive Plate") 3. Remove th ...
