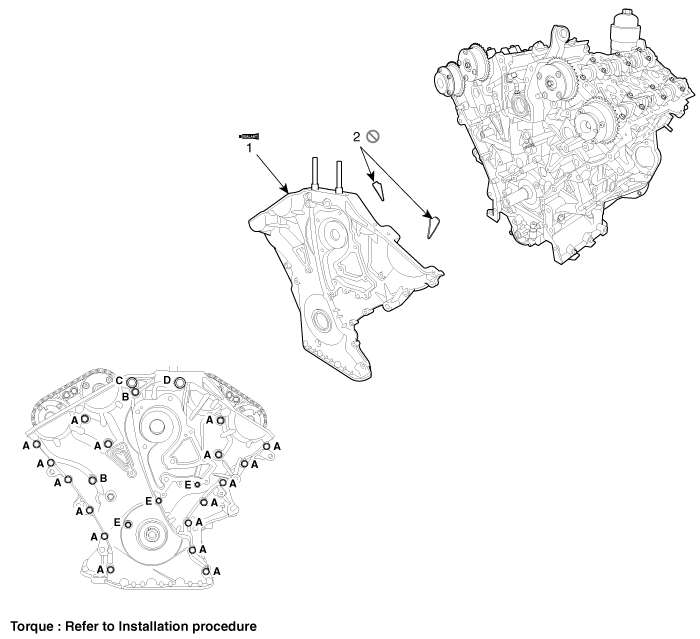

Components

1. Timing chain cover
2. Gasket

Front Oil Seal Repair procedures
Replacement 1. Remove the crankshaft damper pulley. (Refer to Timing System - "Crankshaft Damper Pulley") 2. Remove the front oil seal (A). 3. Using SST(09231-3C100), install a new front ...

Timing Chain Cover Repair procedures
Removal 1. Remove the LH/RH cylinder head cover. (Refer to Cylinder Head Assembly - "Cylinder Head Cover") 2. Remove the lower oil pan. (Refer to Lubrication System - "Oil Pan") 3. Rem ...
