Kia Cadenza: Blind Spot Detection System / Troubleshooting

Kia Cadenza YG 2016-2025 Service Manual / Body Electrical System / Blind Spot Detection System / Troubleshooting

Troubleshooting

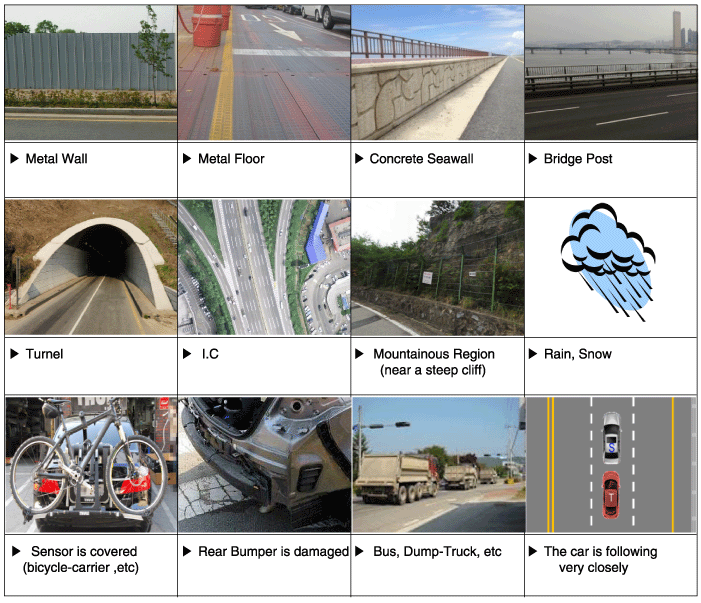

Examples of False-Alarm Occurrence from system characteristics (It’s not a problem)

–	Characteristics of EM Wave : EM Waves are reflected against all material and especially metal very well. Reflections of EM Waves are varies with the shape of object. (※ EM : Electro Magnetic)

–	Radar Sensor : Radar Sensor sense the car by 24GHz echo signal.

–	Special enviroment make the ''False-Alarm'' occurrence because of EM waves.
