Kia Cadenza: Windshield Deicer / Windshield Deicer Switch Repair procedures
Kia Cadenza YG 2016-2025 Service Manual / Body Electrical System / Windshield Deicer / Windshield Deicer Switch Repair procedures
| Inspection |
| 1. |
The windshield deicer switch inputs can be checked using the GDS. |
| 2. |
To check the input value of windshield deicer switch, select option "IPM". |
| 3. |

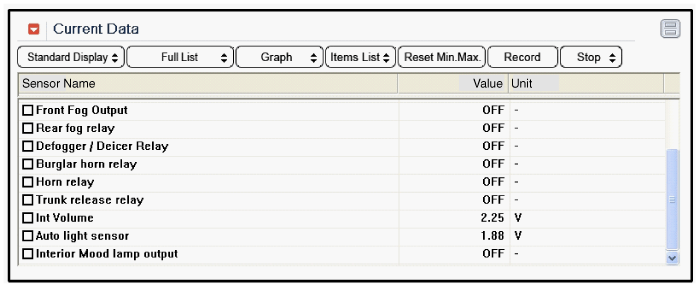

Select option "Current Data".
|
| 4. |

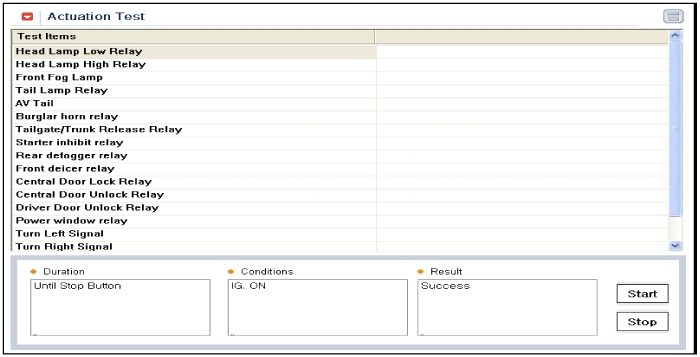

To check the input value of windshield deicer switch in force mode, select option.
|
| Removal |
| 1. |
Disconnect the negative (-) battery terminal. |
| 2. |
Remove the center fascia panel.
(Refer to Body - "Crash Pad") |
| 3. |
Remove the heater control unit (A) after removing screws (4EA).
|
| Installation |
| 1. |
Install the heater control unit. |
| 2. |
Install the center fascia panel. |
Windshield Deicer Repair procedures
Inspection
1.
Remove the cowl top cover. (Refer to the wiper)
2.
Disconnect the windshield deicer connector (A) from the wiper motor linkage.
3.
Check for continuity between the terminals ...
