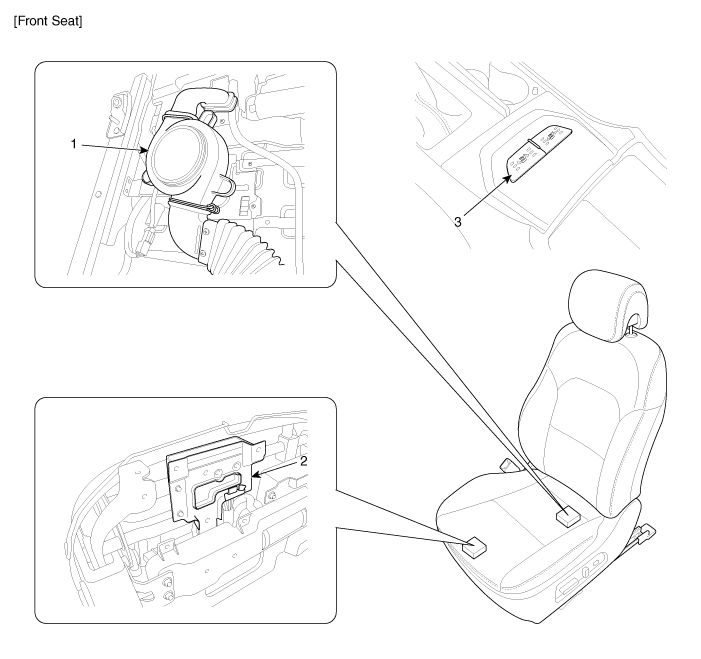

Components (1)

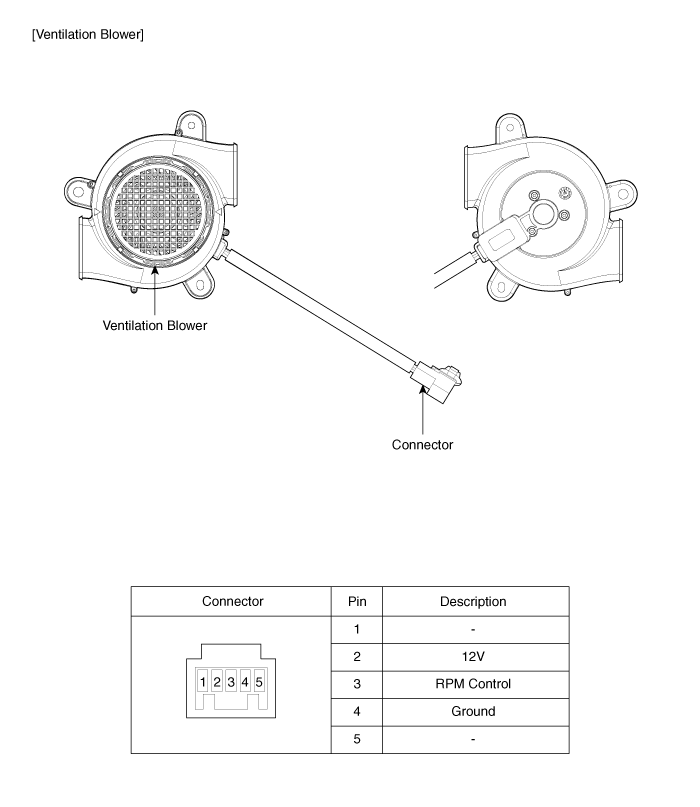

1. Ventilation blower
2. Ventilation ECU

3. Ventilation seat switch

Components (2)

Seat Heater Switch Repair procedures

Inspection Front Seat Heater Switch 1. Disconnect the negative (-) battery terminal. 2. Remove the floor console upper cover (A). (Refer to Body - "Console") 3. Remove the seat heater sw ...

Air Ventilation Seat Schematic Diagrams

Circuit Diagram ...
