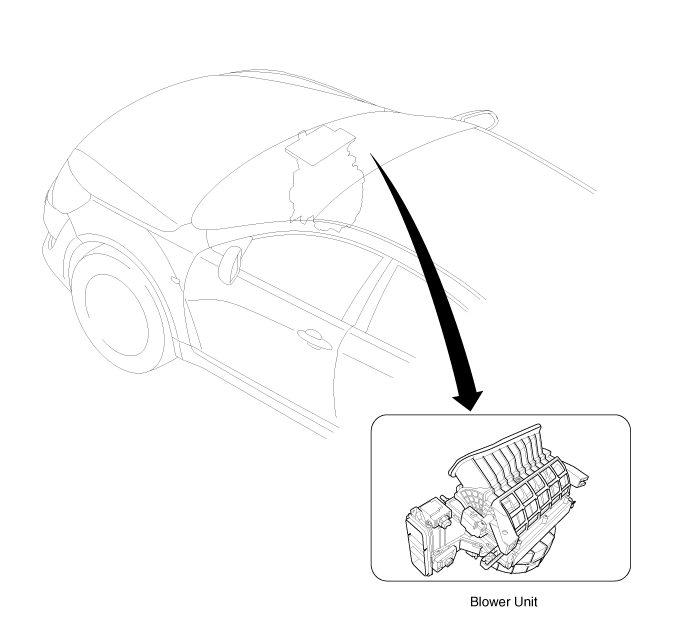

Component Location

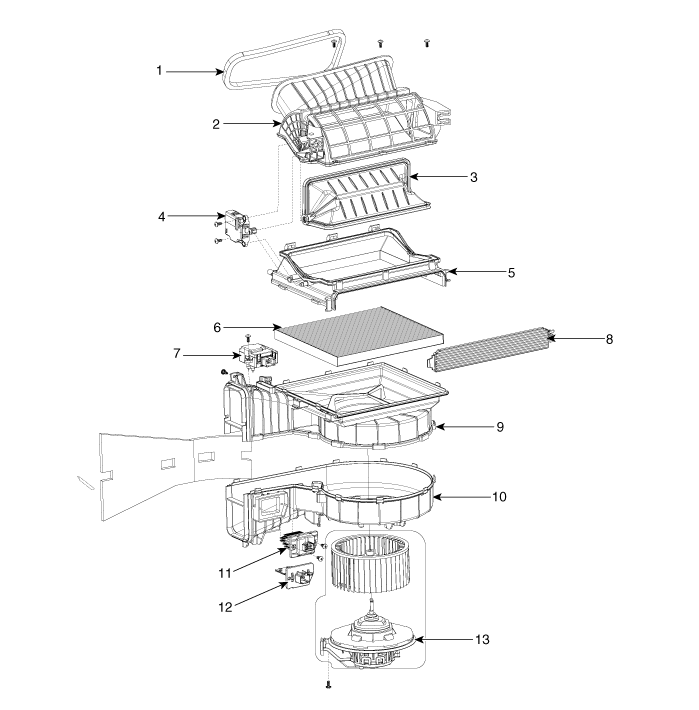

Components

1. Duct Seal
2. Duct Case
3. Inlet Door
4. Intake Actuator
5. Inlet Duct Case (A)

6. Climate control air filter
7. Cluster Ionizer
8. Climate control air filter Cover
9. Blower Upper Case
10. Blower Lower Case

11. FET
12. Resistor
13. Blower Motor

Blower Unit Repair procedures

Replacement 1. Disconnect the negative (-) battery terminal. 2. Remove the heater and blower unit.(Refer to HA group – heater unit). 3. Remove the blower unit (A) from the heater unit ...
