Kia Cadenza: Brake System / Brake Line Components and Components Location

Kia Cadenza YG 2016-2025 Service Manual / Brake System / Brake System / Brake Line Components and Components Location

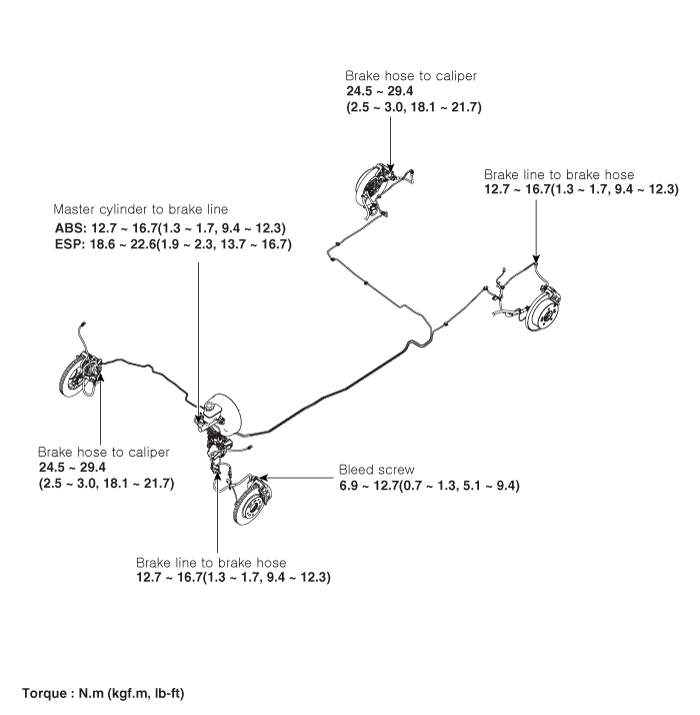

Components

Master Cylinder Repair procedures
Removal 1. Turm ignition switch OFF and disconnect the negative (-) battery cable. 2. Remove the air duct (B) and air cleaner assembly (A). 3. Disconnect the brake fluid level switch conne ...

Brake Line Repair procedures
Removal 1. Disconnect the brake fiuid level switch connector, and remove the reservoir cap. 2. Remove the brake fluid from the master cylinder reservior with a syringe.   &nb ...
