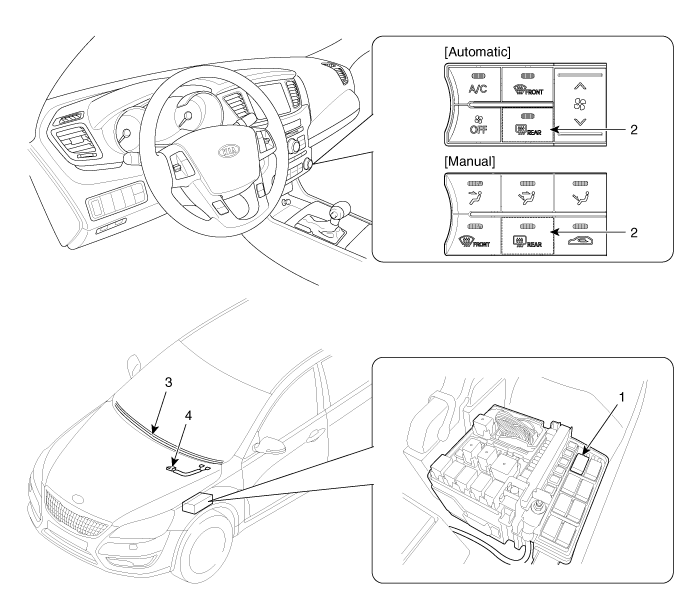

Component Location

1. Windshield deicer relay (Built-in engine room relay box)
2. Windshield deicer switch (Rear glass defogger switch)

3. Windshield deicer
4. Deicer connector

Description and Operation

Description Windshield deicer system prevent windshield wiper from freezing in the winter season. It consists of deicer in the lower part of windshield, switch and relay. IPM receives an input ...
