Kia Cadenza YG: Airbag Module / Curtain Airbag (CAB) Module Components and Components Location

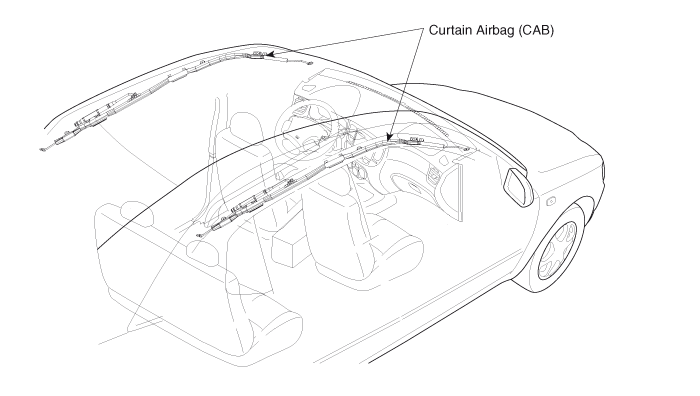

| Components |
Description Curtain airbags are installed inside the headliner (LH and RH) and protect the driver and passenger from danger when side crash occurs.
Removal 1. Disconnect the battery negative cable and wait for at least thirty seconds before beginning work. 2. Remove the roof trim. (Refer to Body - "Roof trim assembly") 3.
