Kia Cadenza: Smart trunk / Detecting area

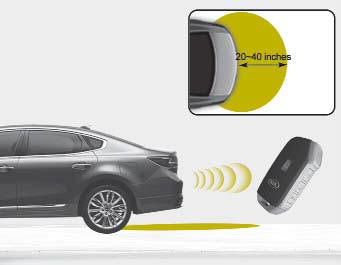

- The Smart Trunk operates a welcome
alert if the smart key is
detected within 20 ~ 40 inches (50
~ 100 cm) from the trunk.
- The alert stops if the smart key is
positioned outside the detecting
area during the Detect and Alert
stage.
✽ NOTICE
- The Smart Trunk function will not
work if any of the following
occurs:
- The smart key is close to a radio
transmitter such as a radio station
or an airport which can
interfere with normal operation
of the transmitter.
- The smart key is near a mobile
two way radio system or a cellular
phone.
- Another vehicle's smart key is
being operated close to your
vehicle.
- The detecting range may decrease
or increase when :
- One side of the vehicle is raised
to replace a tire or to inspect the
vehicle.
- The vehicle is parked on a slope
or unpaved road, etc.
1. Door lock
2. Door unlock
3. Trunk open
4. Panic
5. Remote start
If you press any button of the smart
key during the Detect and Alert
stage, the Smart Trunk function will
be deactiv ...
(1) Driver’s door power window
switch
(2) Front passenger’s door power
window switch
(3) Rear door (left) power window
switch
(4) Rear door (right) power window
switch
(5) Window ...
