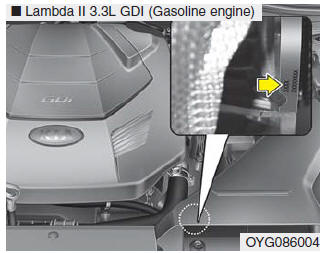

The engine number is stamped on
the engine block as shown in the
drawing.
Other information:
Removal
1.
Remove the air duct (A).
2.
Disconnect the battery (-) terminal (A)and then (+) terminal (B).
3.
Remove the battery mounting bracket (D) and the insulation pad (C), and then remove the battery (E).
4.
Disconnect the front connector mounting clip (A).
5.
Remove the batt ...
Removal and Installation
1.
Remove the lower oil pan.
(Refer to Lubrication System - "Oil Pan")
2.
Remove the oil pump chain cover (A).
Tightening torque :
9.8 ~ 11.8N.m (1.0 ~ 1.2kgf.m, 7.2 ~ 8.7lb-ft)
3.
Remove the bolt (A) and then seperate the chain with sprocket from the oil ...
