Kia Cadenza: Driving your vehicle / ENGINE START/STOP button

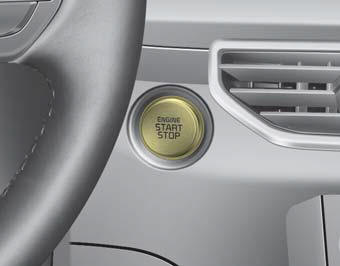

Illuminated ENGINE
START/STOP button
.jpg)
Whenever the front door is opened,
the ENGINE START/STOP button
will illuminate for your convenience.
The light will go off after about 30
seconds when the door is closed.
When all doors are closed, closed
and you lock the vehicle by using the
transmitter or the smart key, the light
will go off immediately.
Before entering vehicle
Be sure that all windows, outside
mirror(s), and outside lights are
clean.
Check the condition of the tires.
Check under the vehicle for any
sign of leaks.
B ...
OFF
To turn off the engine (START/RUN
position) or vehicle power (ON position),
press the ENGINE
START/STOP button with the shift
lever in the P (Park) position. When
you press the ENGINE
...
