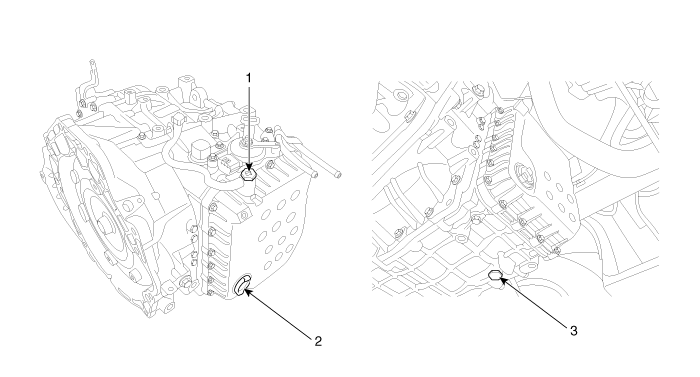

Components Location

1. Injection hole(eyebolt)
2. Oil level plug
3. Oil drain plug

Oil Pump Components and Components Location
Components 1. Reaction shaft support assembly2. Oil pump housing3. Driven gear4. Drive gear5. Oil seal6. Bush-Housing7. Reaction shaft8. Bush- Reaction shaft9. Sleeve10. Bolt Oil Pump Operatio ...

Fluid Repair procedures
Service Adjustment Procedure Oil level Check     When checking the oil level, be careful not to enter dust, foreign matters, etc. from fill hole. 1. Remove the ey ...
