Kia Cadenza: Timing System / Front Oil Seal Components and Components Location

Kia Cadenza YG 2016-2025 Service Manual / Engine Mechanical System / Timing System / Front Oil Seal Components and Components Location

Components

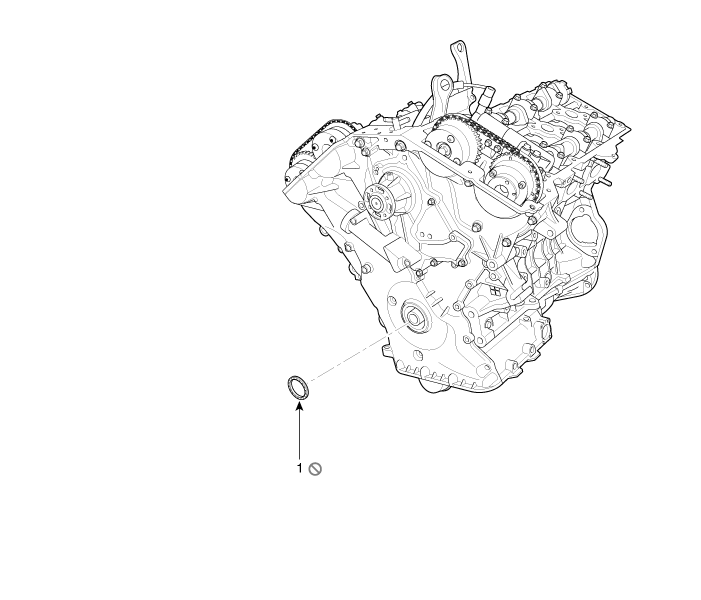

1. Front oil seal

Crankshaft Damper Pulley Repair procedures
Removal and Installation     • Use fender covers to avoid damaging painted surfaces. • To avoid damage, unplug the wiring connectors carefully while h ...

Front Oil Seal Repair procedures
Replacement 1. Remove the crankshaft damper pulley. (Refer to Timing System - "Crankshaft Damper Pulley") 2. Remove the front oil seal (A). 3. Using SST(09231-3C100), install a new front ...
