Kia Cadenza: Features of your vehicle / Fuel filler door
Opening the fuel filler door
.jpg)

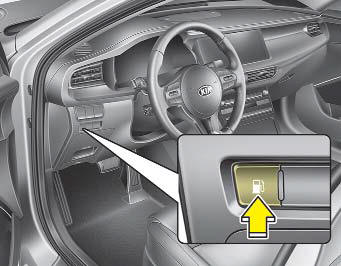

The fuel filler door must be opened from inside the vehicle by pressing the fuel filler door opener button.
If the fuel filler door does not open because ice has formed around it, tap lightly or push on the door to break the ice and release the door. Do not pry on the door. If necessary, spray around the door with an approved de-icer fluid (do not use radiator anti-freeze) or move the vehicle to a warm place and allow the ice to melt.
.jpg)

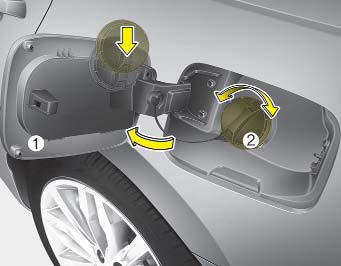

1. Stop the engine.
2. To open the fuel filler door, push the fuel filler door opener button.
3. Pull open the fuel filler door (1).
4. To remove the cap, turn the fuel filler cap (2) counterclockwise.
5. Refuel as needed.
WARNING
Before refueling, be sure to check what type of fuel is used for your vehicle.
If you put diesel fuel into a gasoline- powered vehicle or gasoline into a diesel-powered vehicle, it may affect the fuel system and cause serious damage to the vehicle.
