Kia Cadenza: Engine Control System / Fuel Pressure Control Valve (FPCV) Troubleshooting

Kia Cadenza YG 2016-2025 Service Manual / Engine Control / Fuel System / Engine Control System / Fuel Pressure Control Valve (FPCV) Troubleshooting

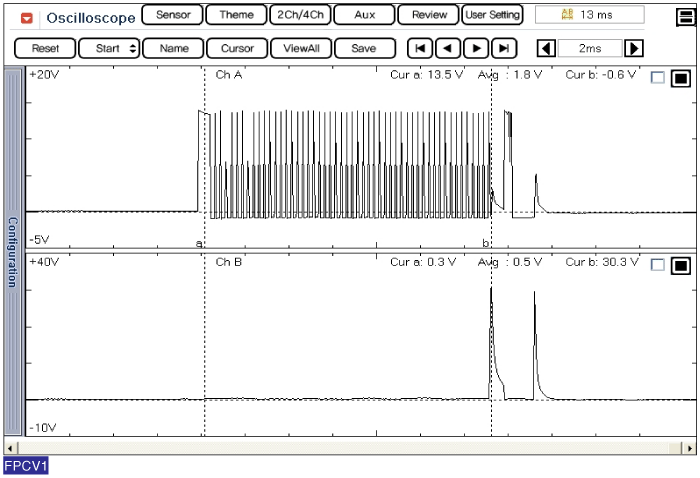

Signal Waveform

Fuel Pressure Control Valve (FPCV) Specifications
Specification ItemSpecificationCoil Resistance (Ω)1.04 ~ 1.27 [23°C(73.4°F)] ...

Fuel Pressure Control Valve (FPCV) Schematic Diagrams
Circuit Diagram ...
