Kia Cadenza: Scheduled maintenance service / Maintenance Under Severe Usage Conditions - Non Turbo Models
The following items must be serviced more frequently on cars normally used

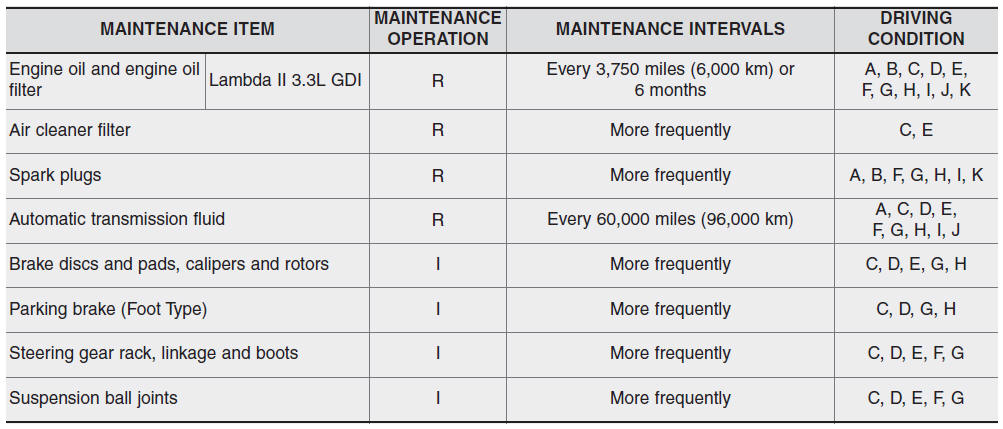

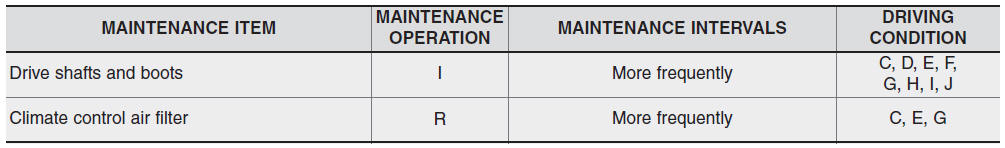

under severe driving conditions. Refer
to the chart below for the appropriate maintenance intervals.
R : Replace
I : Inspect and, after inspection, clean, adjust, repair or replace if
necessary
.jpg)
.jpg)
The following maintenance services must be performed to ensure good emission
control and performance.
Keep receipts for all vehicle emission services to protect your warranty. Where
both mileage ...
A- Repeatedly driving short distance of less than 5 miles (8 km)
in normal temperature or less than 10 miles (16 km) in freezing
temperature
B- Extensive engine idling or low speed driving for lo ...
Other information:
Removal
1.
Remove the crash pad lower panel. (Refer to the Body group- crash pad).
2.
Remove the shower duct (A).
3.
Disconnect the stop lamp switch connector (A).
4.
Remove the brake pedal member mounting nut (B).
Tightening torque:
9.8 ~ 14.7 N.m (1.0 ~ 1.5 kgf.m, 7.2 ~ 10.8lb- ...
Inspection
1.
Disconnect the negative(-) battery terminal.
2.
Remove the lighting switch of the multi-function switch. (Refer to the multi-function switch)
3.
With the front fog lamp switch, make sure that continuity exists between the terminals below.
If continuity is not as specified, ...
