Kia Cadenza: Heater / Mode Control Actuator Components and Components Location

Kia Cadenza YG 2016-2025 Service Manual / Heating,Ventilation, Air Conditioning / Heater / Mode Control Actuator Components and Components Location

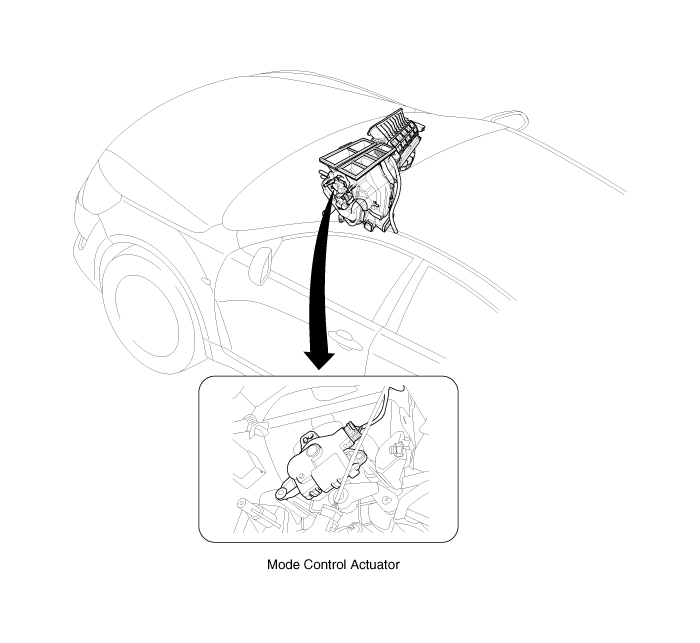

Component Location

Temperature Control Actuator Repair procedures
Inspection 1. Ignition "OFF" 2. Disconnect the connector of temperature control actuator. 3. Verify that the temperature control actuator operates to the hot position when connecting 12 ...

Mode Control Actuator Description and Operation
Description The mode control actuator is located at the heater unit. It adjusts position of mode door by operating mode control actuator based on signal of A/C control unit. Pressing mode select ...

Other information:

Kia Cadenza YG 2016-2025 Service Manual: Transaxle Oil Temperature Sensor Repair procedures


Inspection 1. Turn ignition switch OFF. 2. Remove the battery and battery tray. (Refer to Engine Electrical System - "Battery") 3. Disconnect the solenoid valve connector (A). 4. Measure the resistance between + terminal (9) and - terminal (13). 5. Check that the resistance i ...

Kia Cadenza YG 2016-2025 Service Manual: Schematic Diagrams


System Block Diagram Component Parts And Function Outline Component partFunctionVehicle-speed sensorConverts vehicle speed to pulse.ECMReceives signals from sensor and control switches.Cruise control indicatorIlluminate when CRUISE main switch is ON (Built into cluster)Cruise Control switchesC ...
