Kia Cadenza: Air bag - advanced supplemental restraint
system / Occupant Detection System
(ODS)
Your vehicle is equipped with an
occupant detection system in the
front passenger's seat.
The occupant detection system is
designed to detect the presence of a
properly-seated front passenger and
determine if the passenger's front air
bag should be enabled (may inflate)
or not. Only the front passenger front
air bag is controlled by the Occupant
Detection System.

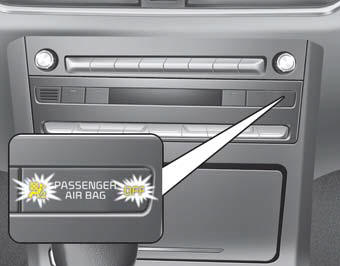

Do not put anything in front of the
passenger air bag indicator.
The SRS consists of the following
components:
1. Driver's front air bag module
2. Passenger's front air bag module
3. Side air bag modules
4. Curtain air bag modules
5. Retractor pre-tens ...
An detection device located within
the front passenger seat cushion.
An electronic system which determines
whether the passenger air
bag systems should be activated
or deactivated.
...
