Kia Cadenza YG: Lubrication System / Oil Filter Body Components and Components Location

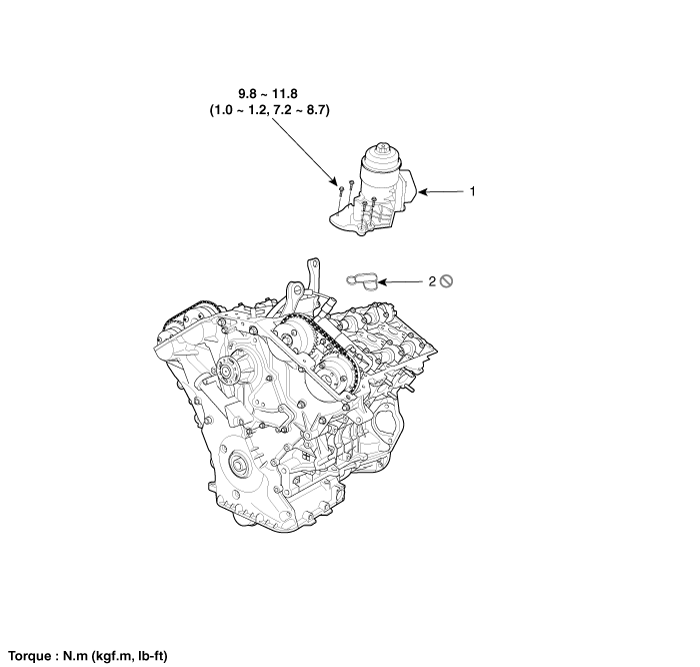

| Components |
| 1. Oil filter body 2. Gasket |
Replacement • Prolonged and repeated contact with mineral oil will result in the removal of natural fats from the skin, leading to dryness, irritation and dermatitis.
Removal and Installation 1. Drain engine oil. (Refer to Lubrication System - "Engine Oil") 2. Remove the water center pipe. (Refer to Cooling System - "Water Temperature Control Assembly") 3.
