Kia Cadenza YG: Exterior / Panoramaroof Components and Components Location

Kia Cadenza YG 2016-2021 Service Manual / Body (Interior and Exterior) / Exterior / Panoramaroof Components and Components Location

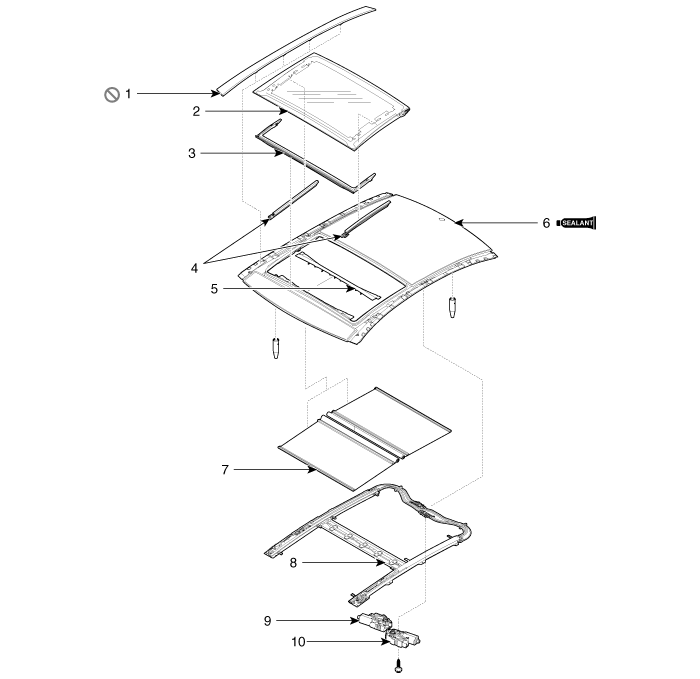

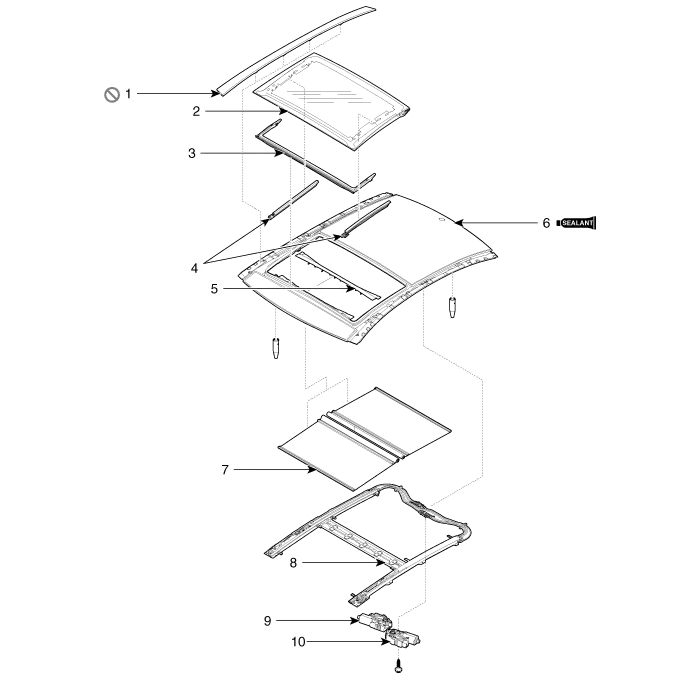

Components

1. Roof moulding
2. Movable glass
3. Wind deflector
4. Folding cover assembly
5. Front cover assembly
6. Panoramaroof frame assembly
7. Roller blind assembly
8. Mechanism assembly
9. Movable glass motor assembly
10. Roller blind motor assembly

    Replacement Roof Moulding Replacement     • When prying with a flat-tip screwdriver, wrap itwith protective tape, and apply protective tapearound the related parts, to prevent damaged.

    Replacements Movable glass Replacement 1. Open the movable glass fully. 2. Remove the folding cover (A). 3. After loosening the mounting screws, then remove the movable glass (A).
