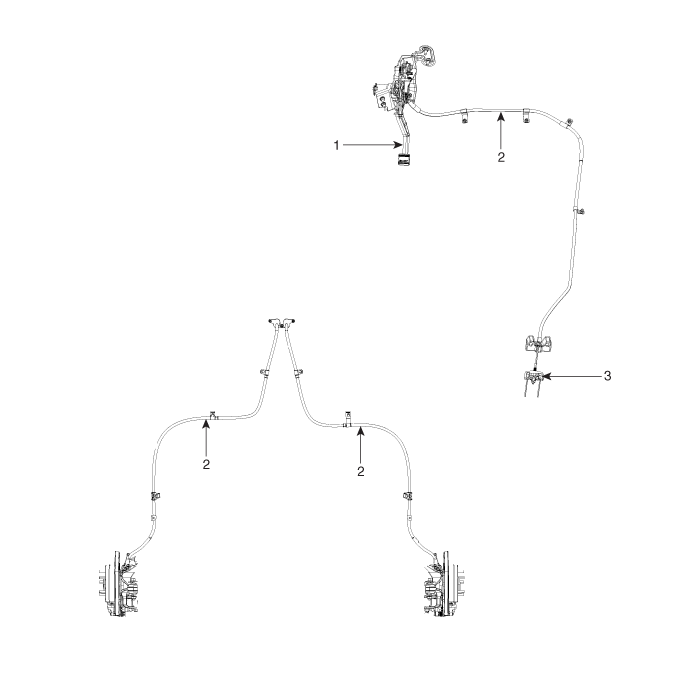

Components (1)

1. Parking brake pedal
2. Parking brake cable
3. Equalizer assembly

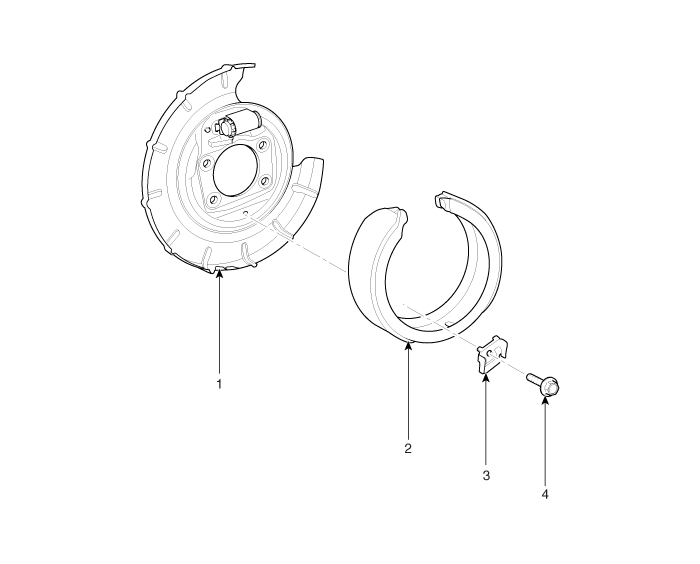

Components (2)

1. Backing plate
2. Brake shoe
3. Shoe hold clip
4. Bolt

    Removal Parking Brake Pedal 1. Remove the main crash pad. (Refer to the Body group-crash pad) 2. Remove the cowl cross bar. (Refer to the Body group - Crash pad) 3.
