| Replacement |
| 1. |
Remove the front wheel & tire (A).
|
| 2. |
Loosen the bolt (A) and then disconnect the universal joint assembly from the pinion of the steering gear box.
|
| 3. |
Remove the under cover (A).
|
| 4. |
Remove the sprit pin and castle nut and then disconnect the tie-rod end (A) from the front knuckle.
|
| 5. |
Loosen the bolt & nut and then remove the lower arm (A).
|
| 6. |
Remove the front lower arm from the front knuckle using the SST (0K545-A9100).
|
| 7. |
Disconnect the stabilizer link (B) with the front strut assembly (A) after loosening the nut.
|
| 8. |
Loosen the bolt and then remove the front roll stopper (A).
|
| 9. |
Disconnect the muffler rubber hanger (A).
|
| 10. |

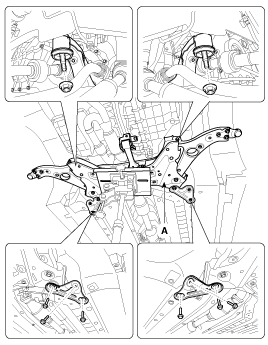

Loosen the bolts & nuts and then remove the sub frame (A).
|
| 11. |
Remove the stabilizer bar (A).
|
| 12. |
Remove steering gear box (A) from the front sub frame by loosening the mounting bolts.
|
| 13. |
Installation is the reverse of removal. |
| 14. |
Check the alignment.
(Refer to Suspension System - "Alingnent") |
