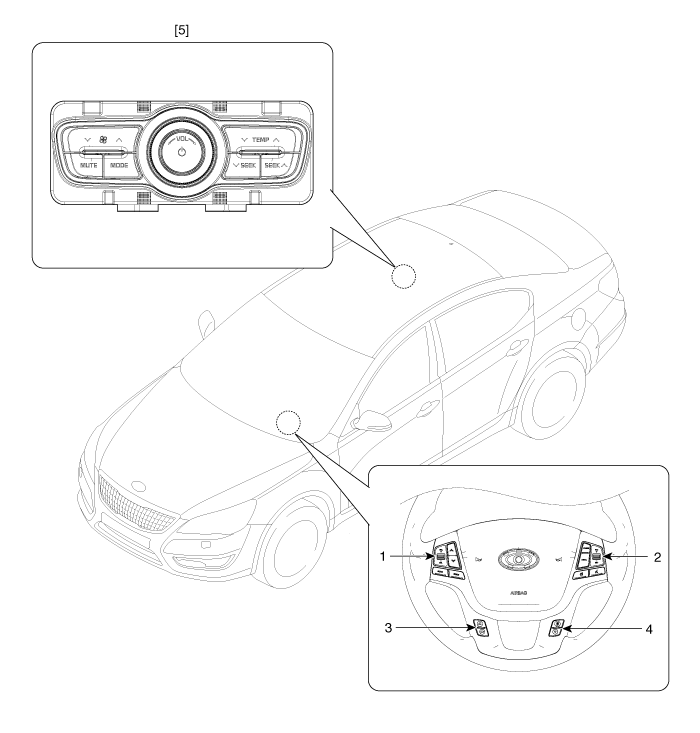

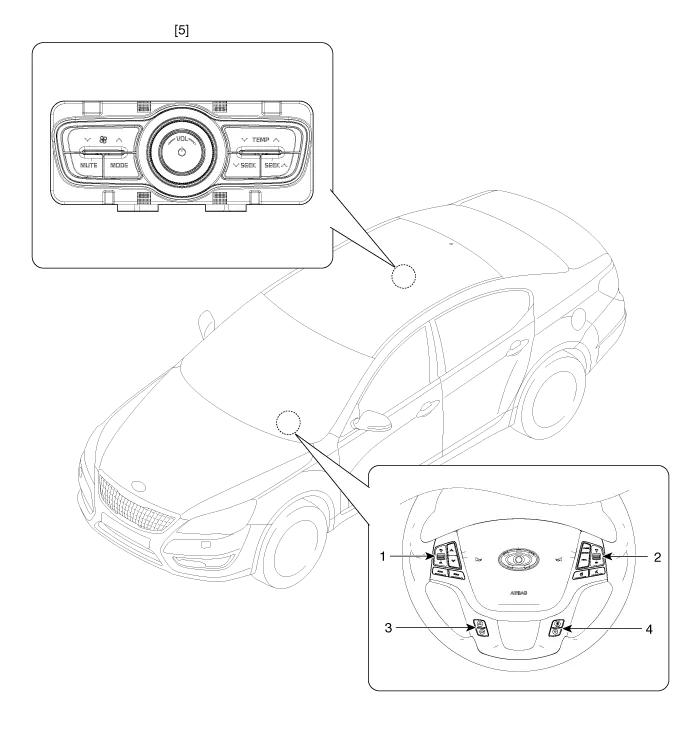

Components Location

1. Remote control switch (Audio) [LH]
2. Remote control switch (Cruise) [RH]
3. Bluetooth hands fress switch

4. Trip switch
5. Rear seat remote control switch

Roof Antenna Repair procedures

Removal 1. Remove the rear roof trim. (Refer to Body - "Roof Trim") 2. Disconnect the connector (A) and cable (B) from the roof antenna. 3. Remove the roof antenna after removing a nut (A ...

Steering Wheel Remote Controller (SWRC) Schematic Diagrams

Circuit Diagram ...
