Kia Cadenza: Rear Cross-Traffic Collision Warning (RCCW)/
Rear Cross-Traffic Collision-Avoidance Assist
(RCCA) / System description
Rear Cross-Traffic Collision
Warning
.jpg)

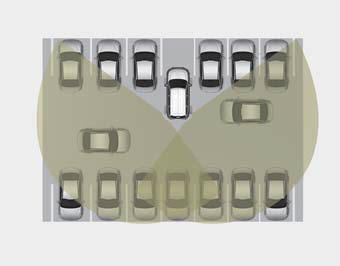

Rear Cross-Traffic Collision Warning
uses rear corner radar sensors to
monitor the approaching cross traffic
from the left and right side of the
vehicle when your vehicle is in
reverse.
The warning distance varies relative
to the approaching vehicle speed.
Rear Cross-Traffic Collision-
Avoidance Assist
Rear Cross-Traffic Collision-
Avoidance Assist monitors
approaching cross traffic from the left
and right side of the vehicle when
your vehicle is in reverse.
Rear Cross-Traffic Collision-
Avoidance Assist may activate the
Electronic Stability Control (ESC) in
accordance with a colliding possibility
with an approaching vehicle. It is to
lower the colliding risk or mitigate the
colliding damage.
WARNING
- Always be aware of road conditions
while driving and be
alert for unexpected situations
even though Rear
Cross-Traffic Collision
Warning and Rear Cross-
Traffic Collision-Avoidance
Assist are operating.
- Rear Cross-Traffic Collision
Warning and Rear Cross-
Traffic Collision-Avoidance
Assist are supplemental systems
to assist you. Do not
entirely rely on the systems.
Always pay attention, while
driving, for your safety.
- Rear Cross-Traffic Collision
Warning and Rear Cross-
Traffic Collision-Avoidance
Assist are not substitutes for
proper and safe driving.
Always drive safely and use
caution when backing up the
vehicle.
System setting
The driver can activate the systems
by placing the ENGINE
START/STOP button to the ON
position and by selecting "Settings
> Vehicle > Driver Assistance >
Par ...
