System setting

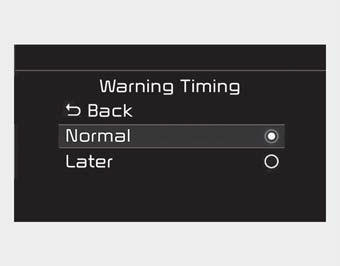

Warning Timing

The driver can select the initial warning activation time select "Settings > Vehicle > Driver Assistance > Warning Timing". The options for the initial Rear Cross-Traffic Collision Warning includes the following:

- Normal:

When this condition is selected, the initial Rear Cross-Traffic Collision Warning is activated normally. If this setting feels too sensitive change the option to ‘Later’.

The warning activation time may feel late if the side/rear vehicle abruptly accelerates.

- Later :

Select this warning activation time when the traffic is light and you are driving in a low speed.

✽ NOTICE

If you change the warning timing, the warning time of other systems may change. Always be aware before changing the warning timing.

Warning Volume

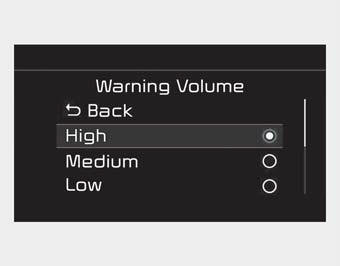

The driver can select the “Warning Volume” of the Rear Cross-Traffic Collision Warning by selecting on the "Settings > Vehicle > Driver Assistance > Warning Volume > High/Medium/Low”.

✽ NOTICE

If you change the warning volume, the warning volume of other systems may change. Always be aware before changing the warning volume.

Operating conditions

To operate:

Go to the "Settings > Vehicle > Driver Assistance > Parking Safety > Rear Cross-Traffic Safety” in the Infotainment System screen.

The system will turn on and standby to activate.

The system will activate when vehicle speed is below 7 mph (10 km/h) and with the shift lever in R (Reverse).

* The system will not activate when the vehicle speed exceeds 7 mph (10 km/h). The system will activate again when the speed is below 5 mph (8 km/h).

The system's detecting range is approximately 1 ft ~ 65 ft (0.5 m ~ 20 m). An approaching vehicle will be detected if their vehicle speed is within 5 ~ 22.5 mph (8 km/h ~ 36 km/h).

Note that the detecting range may vary under certain conditions. As always, use caution and pay close attention to your surroundings when backing up your vehicle.

System description
Rear Cross-Traffic Collision Warning Rear Cross-Traffic Collision Warning uses rear corner radar sensors to monitor the approaching cross traffic from the left and right side of the vehic ...

Warning and control
Rear Cross-Traffic Collision Warning If the vehicle detected by the rear corner radar sensors approaches from the rear left/right side of your vehicle, the warning chime will sound, the warning ...
