Kia Cadenza: Rear Cross-Traffic Collision Warning (RCCW)/
Rear Cross-Traffic Collision-Avoidance Assist
(RCCA) / Warning and control
Rear Cross-Traffic Collision Warning
.jpg)

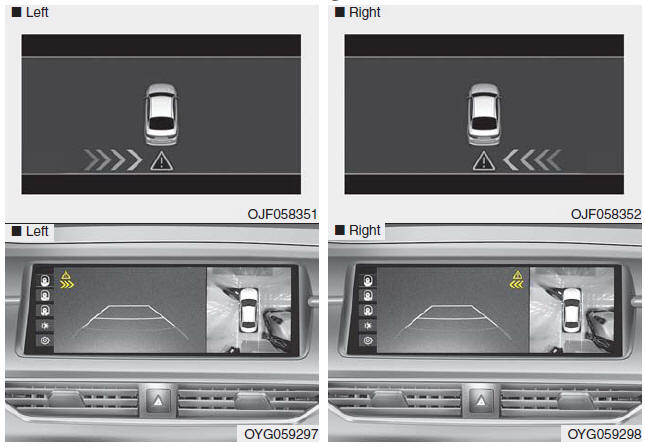

If the vehicle detected by the rear corner radar sensors approaches from
the rear left/right side of your vehicle, the warning chime will sound, the
warning light on the outside rearview mirror will blink and a message will
appear on the LCD display or Infotainment System screen If the rear view
monitor system is in activation, a message will also appear on the
Infotainment System screen.
When the operation condition of
Rear Cross-Traffic Collision Warning
is satisfied the warning will occur
every time a vehicle approaches the
side/rear of your stopped vehicle.
The warning will stop when:
- The vehicle moving at the rear
left/right side of your vehicle is not
in the detection range.
- The vehicle is right behind your
vehicle.
- The vehicle is not driving towards
your vehicle.
- The vehicle’s approaching speed is
decreased.
