Kia Cadenza: Electronic Parking Brake
(EPB) / System warning
.jpg)

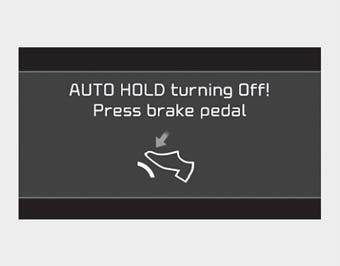

When the conversion from Auto Hold
to EPB is not working properly a
warning will sound and a message
will appear.
CAUTION
Engage the brake pedal when
the above message appears for
the Auto Hold and EPB may not
activate.
.jpg)

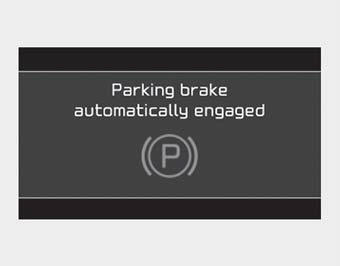

If the EPB is applied while Auto Hold
is activated because of an ESC
(Electronic Stability Control) signal, a
warning will sound and a message
will appear.
If you try to drive off by depressing
the accelerator pedal with the EPB
applied, but the EPB doesn't
release automatically, a warning
will sound and a message will
appear.
If th ...
This warning light illuminates if the
ENGINE START/STOP button is
changed to the ON position and
goes off in approximately 3 seconds
if the system is operating normally.
If the EPB malfunct ...
