Kia Cadenza: Cooling System / Thermostat Components and Components Location

Kia Cadenza YG 2016-2024 Service Manual / Engine Mechanical System / Cooling System / Thermostat Components and Components Location

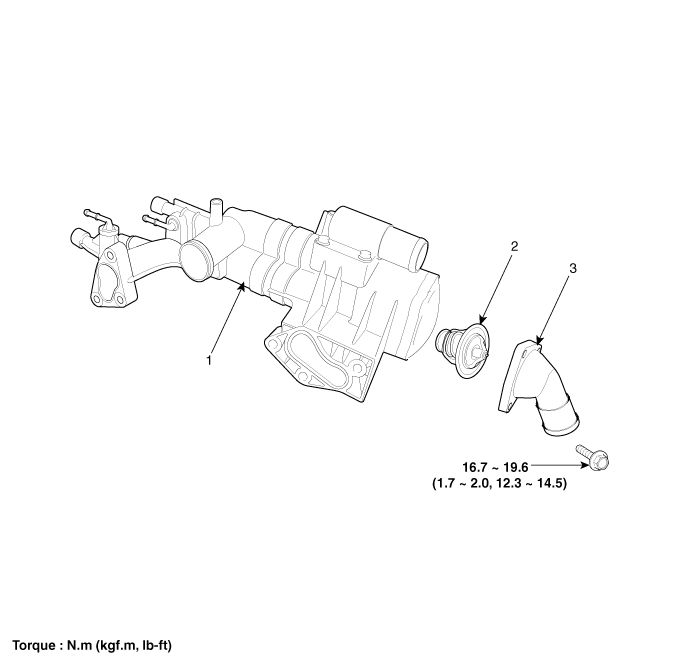

Components

1. Water temperature control assembly
2. Thermostat

3. Water inlet fitting pipe
