Kia Cadenza: Specifications, Consumer information and
Reporting safety defects / Tires and wheels
.jpg)
CAUTION
When replacing tires, use the same size originally supplied with the
vehicle.
Using tires of a different size can damage the related parts or make them work
irregularly.
✽ NOTICE

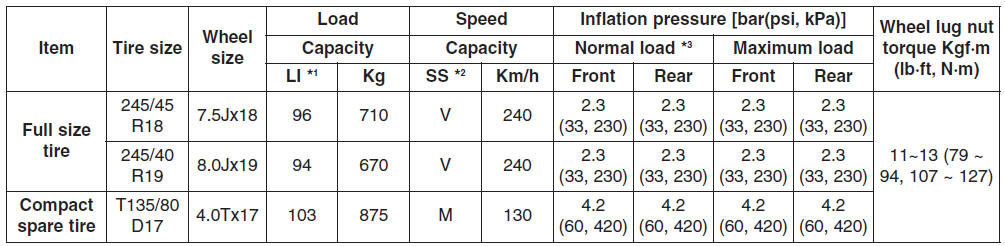

- It is permissible to add 3psi to the standard tire pressure
specification if colder temperatures are expected soon.
Tires typically loose 1psi for every 12°F temperature drop. If extreme
temperature variations are expected, recheck
your tire pressure as necessary to keep them properly inflated.
- We recommend that when replacing tires, use the same originally
supplied with the vehicles. If not, that affects
driving performance.
- When driving in high altitude grades, it is natural for the
atmospheric pressure to decrease. Therefore, please
check the tire pressure and add more air when necessary.
Additionally required tire air pressure per km above sea level: 1.5 psi
(10.5 kPa)
