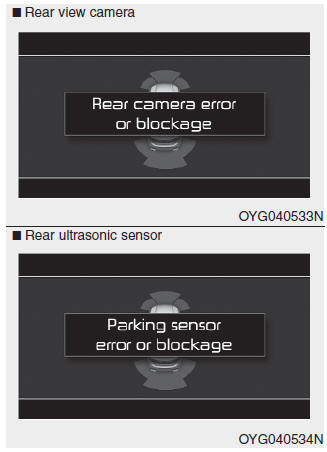

Rear camera error or blockage/ Parking sensor error or blockage

This warning message may appear when :

The rear view camera or the ultrasonic sensor(s) is blocked by dirt, snow, or a foreign object.
There is inclement weather, such as heavy snow, rain, etc. If any of these conditions occur, the system may turn off automatically or not operate properly.

When the warning message is displayed in the cluster, make sure that the rear view camera and the rear ultrasonic sensors are clean.
