Kia Cadenza: Brake system / Warning messages

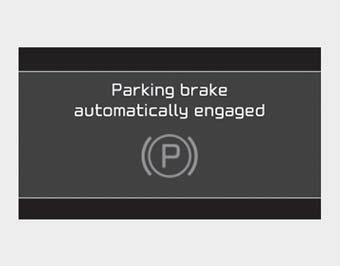

Parking brake automatically
engaged
.jpg)
When the EPB is applied from Auto
Hold, a warning will sound and a
message will appear.

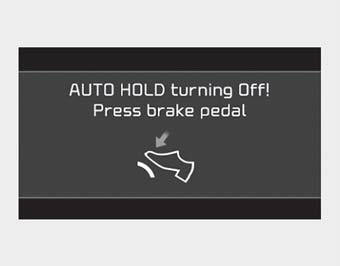

AUTO HOLD turning Off! Press
brake pedal
.jpg)
When the conversion from Auto Hold
to EPB is not working properly a
warning will sound and a message
will appear.
✽ NOTICE
When this message is displayed, the
Auto Hold and EPB may not operate.
For your safety, depress the
brake pedal.

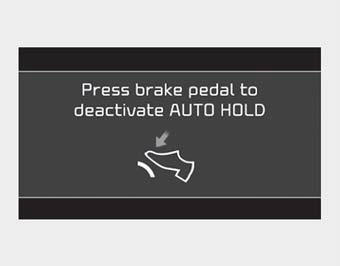

Press brake pedal to deactivate
AUTO HOLD
.jpg)
If you do not apply the brake pedal
when you release the Auto Hold by
pressing the [AUTO HOLD] switch, a
warning will sound and a message
will appear.

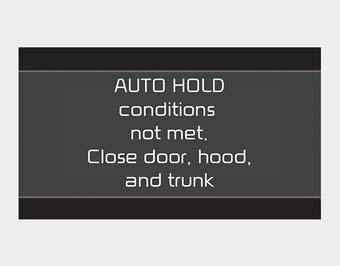

AUTO HOLD conditions not met.
Close door, hood and trunk
.jpg)
When you press the [AUTO HOLD]
switch, if the driver’s door or engine
hood are not closed or the or the
trunk is opened, a warning will sound
and a message will appear on the
LCD display. At this moment, press
the [AUTO HOLD] button after closing
the driver’s door and engine hood
and trunk.
To cancel the Auto Hold operation,
press the Auto Hold switch. The
AUTO HOLD indicator will go out.
To cancel the Auto Hold operation
when the vehicle is at a standstill,
press the Auto Hol ...
ABS (or ESC) will not prevent accidents
due to improper or dangerous
driving maneuvers. Even though
vehicle control is improved during
emergency braking, always maintain
a safe distance betw ...
