Component Location

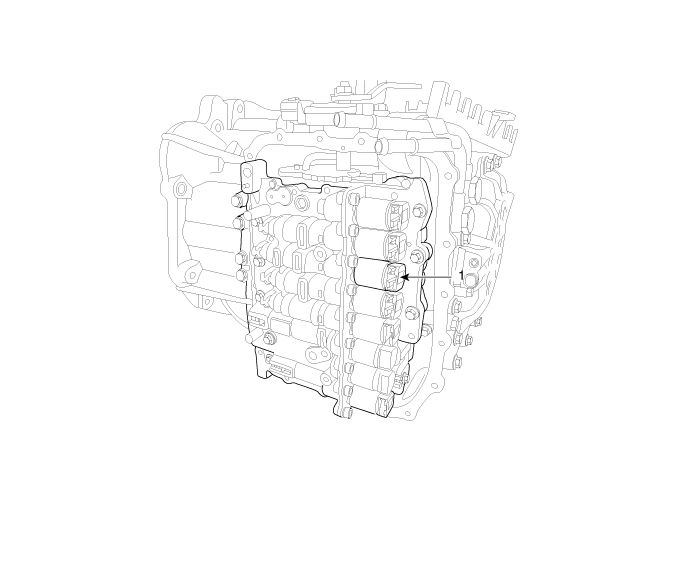

1. 26 Brake control solenoid valve (26/B_VFS)
26 Brake Control Solenoid Valve(26/B_VFS) Specifications
Specification Item SpecificationControl typeN/L (Normal Low)Control pressure kpa(kgf/cm², psi)"9.81 ~ 500.14(0.1 ~ 5.1, 1.42 ~ 72.54)"Current value (mA)50 ~ 850Coil resistance(Ω)5.1 ± 0.3 ...

26 Brake Control Solenoid Valve(26/B_VFS) Description and Operation
Description • 26 Brake control solenoid valve is a Variable Force Solenoid (VFS) type. • When TCM supplies variable current to solenoid valve, hydraulic pressure of 26 brake is ...
