Kia Cadenza YG: Engine Control System / Camshaft Position Sensor (CMPS) Schematic Diagrams
Kia Cadenza YG 2016-2021 Service Manual / Engine Control / Fuel System / Engine Control System / Camshaft Position Sensor (CMPS) Schematic Diagrams

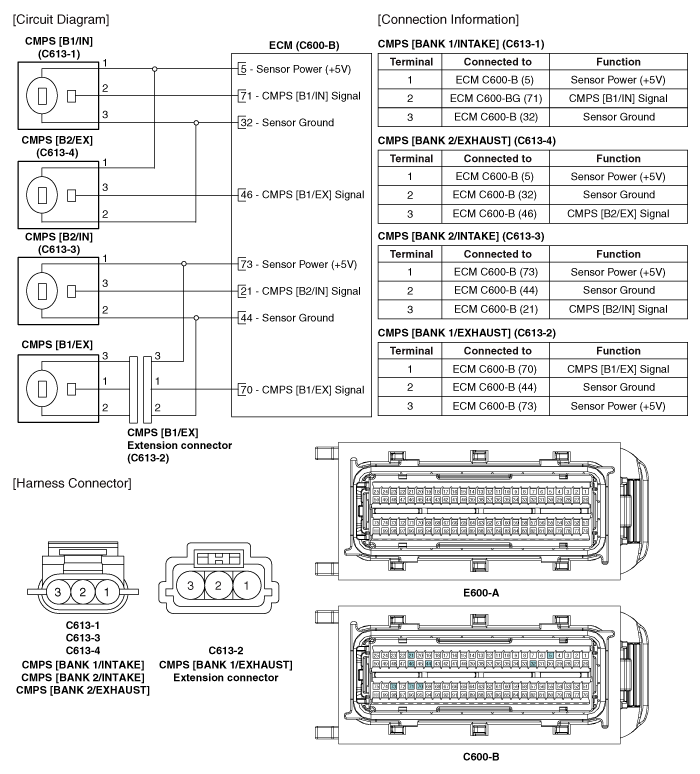

| Circuit Diagram |
Inspection 1. Check the signal waveform of the CMPS and CKPS using the GDS. Specification: Refer to “Wave Form” Removal • DON''T remove the camshaft position sensor while the engine is running or right after engine is turned off.
