Kia Cadenza: Automatic climate control system / Checking the amount of air conditioner refrigerant and compressor lubricant
When the amount of refrigerant is low, the performance of the air conditioning is reduced. Overfilling also has a negative influence on the air conditioning system.
Therefore, if abnormal operation is found, have the system inspected by an authorized Kia dealer.
WARNING - Vehicles equipped with R-1234yf
.gif)
.gif)
Since the refrigerant is mildly flammable and operated at high pressure, the air conditioning system should only be serviced by trained and certified technicians.
It is important that the correct type and amount of oil and refrigerant are used.
All refrigerants should be reclaimed with proper equipment.
Venting refrigerants directly to the atmosphere is harmful to individuals and environment.
Failure to heed these warnings can lead to serious injuries.
CAUTION - AC Repair
It is important that the correct type and amount of oil and refrigerant is used, otherwise damage to the vehicle may occur. To prevent damage, the air conditioning system in your vehicle should only be serviced by trained and certified technicians.
.gif)

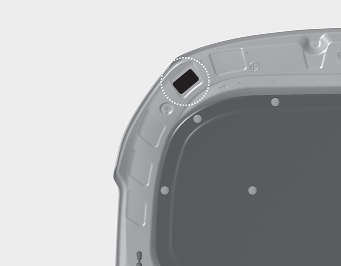

The refrigerant label is located on the underside of the hood.
Air Conditioning refrigerant
label
■ Example
Each symbol and specification on
the air conditioning refrigerant label
is represented below ;
1. Classification of refrigerant
2. Amount of refrigerant
3. Classification of Co ...
