Kia Cadenza YG 2016-2025 Service Manual / Body (Interior and Exterior) / Interior / Console Components and Components Location

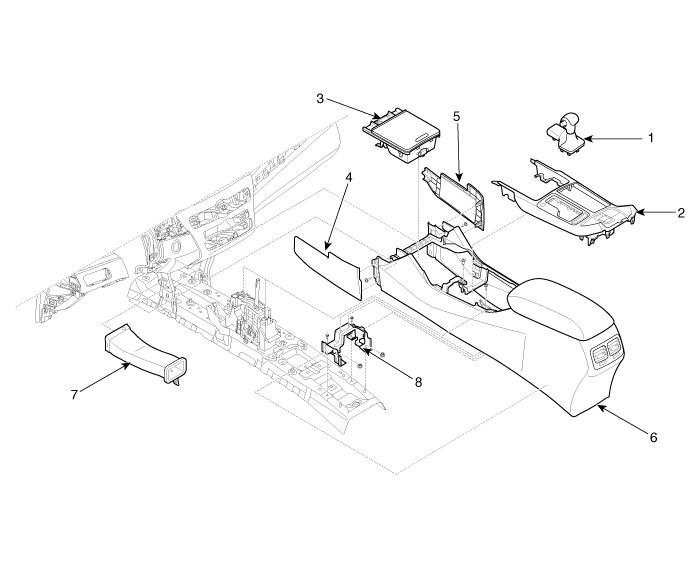

Components

1. Gear knob & boots
2. Floor console upper cover
3. Floor console upper cover tray
4. Console side cover [LH]

5. Console side cover [RH]
6. Floor console assembly
7. Rear air vent duct
8. Console rear mounting bracket

Console Repair procedures

Replacement Floor Console Replacement • When prying with a flat-tip screwdriver, wrap it with protective tape, and apply protective tape around the related ...
