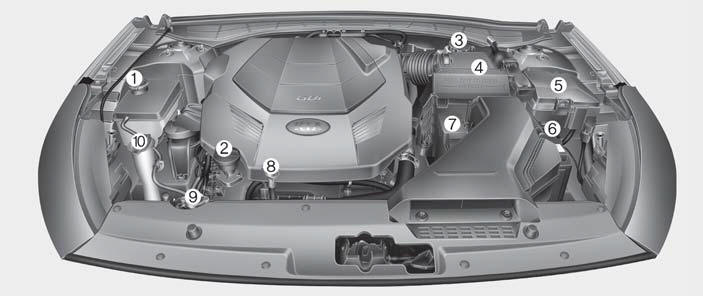

■ Gasoline Engine (Lambda 3.3L - GDI)

1. Engine coolant reservoir
2. Engine oil filler cap
3. Brake fluid reservoir
4. Air cleaner
5. Fuse box
6. Negative battery terminal
7. Positive battery terminal
8. Engine oil dipstick
9. Radiator cap
10. Windshield washer fluid reservoir

Instrument panel overview

1. Steering wheel audio controls (Refer to "Car Infotainment System Quick Reference Guide".) 2. Driver's front air bag 3. Horn 4. Instrument cluster 5. Wiper/Washer 6. ENGINE START/STO ...
