Kia Cadenza: Steering wheel / Heated steering wheel

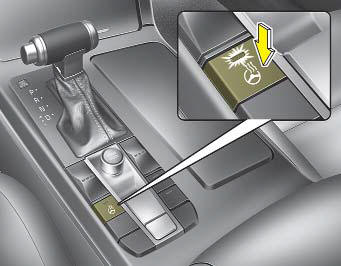

With the ENGINE START/STOP button
in the ON position, pressing the
heated steering wheel button warms
the steering wheel. The indicator on
the button will illuminate.
To turn the heated steering wheel off,
press the button once again. The
indicator on the button will turn off.
WARNING
If the steering wheel becomes
too warm, turn the system off.
The heated steering wheel may
cause burns even at low temperatures,
especially if used for
long periods of time.
✽ NOTICE
The heated steering wheel will turn
off automatically approximately 30
minutes after the heated steering
wheel is turned on.
CAUTION
- Do not install any type of grip
cover for the steering wheel, it
may impair the function of the
heated steering wheel system.
- When cleaning the heated
steering wheel, do not use an
organic solvent such as paint
thinner, benzene, alcohol and
gasoline. Doing so may damage
the surface of the steering
wheel.
- If the surface of steering
wheel is damaged by a sharp
object, damage to the heated
steering wheel components
could occur.
Auto Comfort Control
(for driver’s seat)
The heated steering wheel automatically
controls the steering wheel
temperature depending on the ambient
temperature when the engine is
running. If the heated steering wheel
switch is pushed, the heated steering
wheel will have to be controlled manually.
The Auto Comfort Control is activated
or deactivated when you select
‘Settings → Vehicle → Seat →
Heated/Ventilated Features → Auto
Comfort Control → Steering Wheel
Warmer’ from the Settings menu in
the Infotainment System screen.
Tilt and telescopic steering allows
you to adjust the steering wheel
before you drive.You can also raise it
to give your legs more room when
you exit and enter the vehicle.
The steering wheel ...
To sound the horn, press the horn
symbols on your steering wheel.
Check the horn regularly to be sure it
operates properly.
✽ NOTICE
To sound the horn, press the area
indicated by the ho ...
