Kia Cadenza: Steering wheel / Horn
To sound the horn, press the horn
symbols on your steering wheel.
Check the horn regularly to be sure it
operates properly.
✽ NOTICE

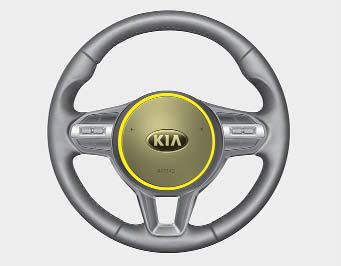

To sound the horn, press the area
indicated by the horn symbol on
your steering wheel (see illustration).
The horn will operate only
when this area is pressed.
With the ENGINE START/STOP button
in the ON position, pressing the
heated steering wheel button warms
the steering wheel. The indicator on
the button will illuminate.
To turn the heated ste ...
Other information:
Replacement
1.
Remove the front wheel & tire.
Tightening torque:
88.3 ~ 107.9N.m (9.0 ~ 11.0kgf.m, 65.1 ~ 79.6lb-ft)
Be careful not to damage to the hub bolts when removing the front wheel & tire.
2.
Loosen the bolt (A) and then disconnect the un ...
Inspection
First Seat Heater
1.
Check for continuity and measure the resistance between No.1 and NO.4 terminals.
No.DescriptionNo.Description1Heater (-)3NTC (+)2NTC (-)4Heater (+)
Standard value (Fabric / Leather)
Cushion : 1.04 Ω ± 10%
Back : 1.1 Ω ± 10%
Set : 2.14 Ω ± 10%
...
