Kia Cadenza YG: Interior / Interior Trim Components and Components Location

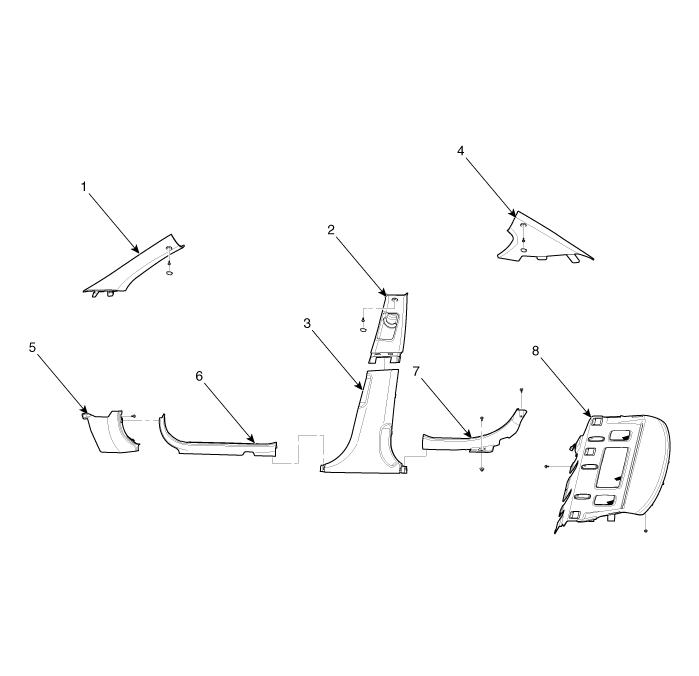

| Components |
| 1. Front pillar trim 2. Center pillar upper trim 3. Center pillar lower trim 4. Rear pillar trim | 5. Cowl side trim 6. Front door scuff trim 7. Rear door scuff trim 8. Rear package tray trim |
Replacement Sunvisor Replacement • When prying with a flat-tip screwdriver, wrap it with protective tape to prevent damage.
Replacement Door Scuff Trim Replacement • Put on gloves to protect your hands. • When prying with a flat-tip screwdriver, wrap it with protective tape to prevent damage.
