Kia Cadenza: Interior lights / Map lamp
.jpg)

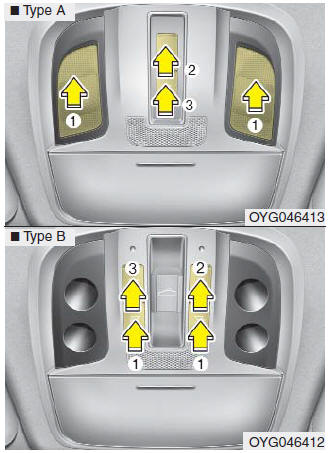

• Press the lens (1) to turn ON the map lamp.
To turn the map lamp OFF press the lens (1) again.
•
(2) : DOOR mode
- The map lamp and room lamp
come on when a door is opened.
The lamps go out after approximately
30 seconds.
- The map lamp and room lamp
come on for approximately 30 seconds
when doors are unlocked
with a transmitter or smart key as
long as the doors are not opened.
- The map lamp and room lamp will
stay on for approximately 20 minutes
if a door is opened with the
Engine Start/Stop button in the
ACC or LOCK/OFF position.
- The map lamp and room lamp will
stay on continuously if the door is
opened with the Engine Start/Stop
button in the ON position.
- The map lamp and room lamp will
go out immediately if the Engine
Start/Stop button is changed to the
ON position or all doors are locked.
- To turn off the DOOR mode, press
the DOOR button (2) once again
(not pressed).
✽ NOTICE
The DOOR mode and ROOM mode can not be selected at the same time.
.gif)
(3):
The map lamp stays on at all times.
(1):
The map lamp of driver’s side stays on at all times.
(1):
The map lamp of passenger’s side stays on at all times.
Interior lights
Do not use the interior lights for
extended periods when the engine is
not running.
It may cause battery discharge.
WARNING - Interior
Lights
Do not use the interior lights
when driving in ...
Room lamp
• : The light stays on at all
times. ...
