Kia Cadenza: Mirrors / Operating Two Way Communication

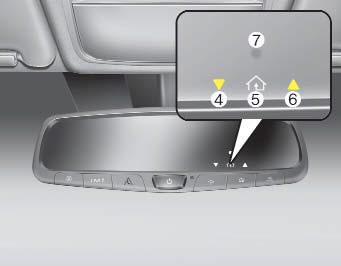

1. Press and release (1), (2) or (3)
button.
.jpg)
2. The indicator (4) and (6) operates
as below:
- If the indicator (4) flashes in
Orange, it indicates that the
garage door is "Closing".
- If the indicator (4) is ON continuously
in Green, it indicates that
the garage door is "Closed".
- If the indicator (6) flashes in
Orange, it indicates that the
garage door is "Opening".
- If the indicator (6) is ON continuously
in Green, it indicates that
the garage door is "Opened".
- If the indicator (4) or (6) does not
turn to Green, it indicates that the
last status of garage door was not
received properly. The HomeLink
mirror tries to receive the last
known status of the garage door
for a few seconds.
1. Complete the HomeLink
"Programming" first.
2. Before the first 10 times HomeLink
button is pressed after the programming,
the following steps
MUST occur to program two way
communication. ...
Homelink mirror with two way communication
provides a way to view
the last stored message from the
garage door opener. In order to recall
the last known status of the last activated
device, ...
