Kia Cadenza: Mirrors / Two Way Communication Programing
1. Complete the HomeLink
"Programming" first.
2. Before the first 10 times HomeLink
button is pressed after the programming,
the following steps
MUST occur to program two way
communication. (only for some
older garage doors)
3. Press and release the programed
HomeLink button to activate the
garage door.
4. Once the garage door is stopped,
press and release the "Learn" or
"Smart" button on the Garage
door opener within 1 minute from
the time of pressing the programed
HomeLink button on mirror.

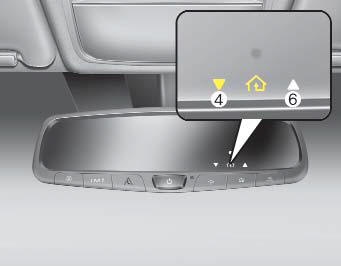

5. If both indicator (4) and (6) are
flashing rapidly for about 5 seconds,
the two way synchronization
is completed.
✽ NOTICE
Some newer garage door openers
provide two-way communication
synchronizing when programming
the original transmitter (OT).

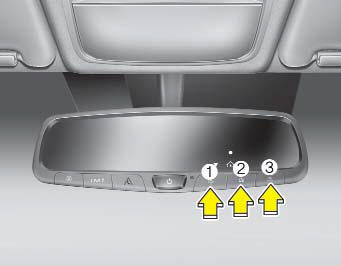

1. Press and hold the button (1) and
(3) simultaneously.
2. The indicator (4) is turned continuously
ON in orange for about 10
seconds.
3. Then the indicator (4) color
changes to Green and ...
1. Press and release (1), (2) or (3)
button.
2. The indicator (4) and (6) operates
as below:
If the indicator (4) flashes in
Orange, it indicates that the
garage door is "Closing".
...
